Air Conditioning Switch: Testing and Inspection

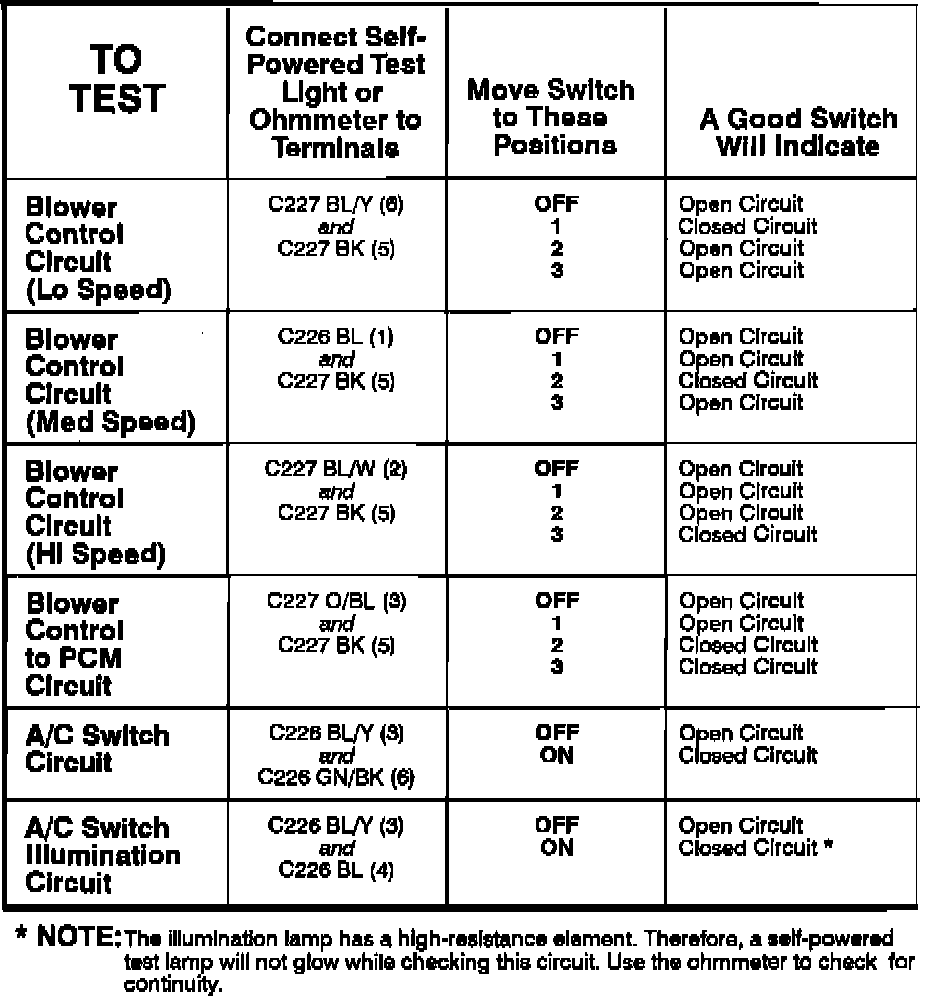

Component Testing Procedure

Component Testing Procedure:

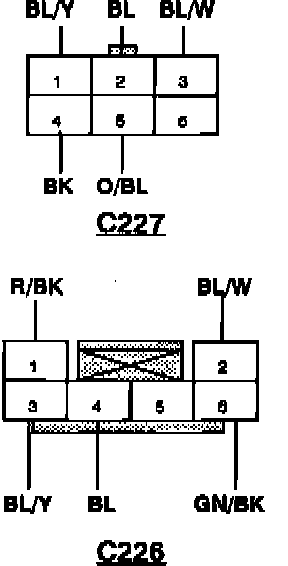

Terminal Location

Terminal ID:

Schematic Heater A/C Control Unit

Schematic:
