With Manual Transaxle

1. Disconnect battery ground cable, then raise and support front of vehicle.

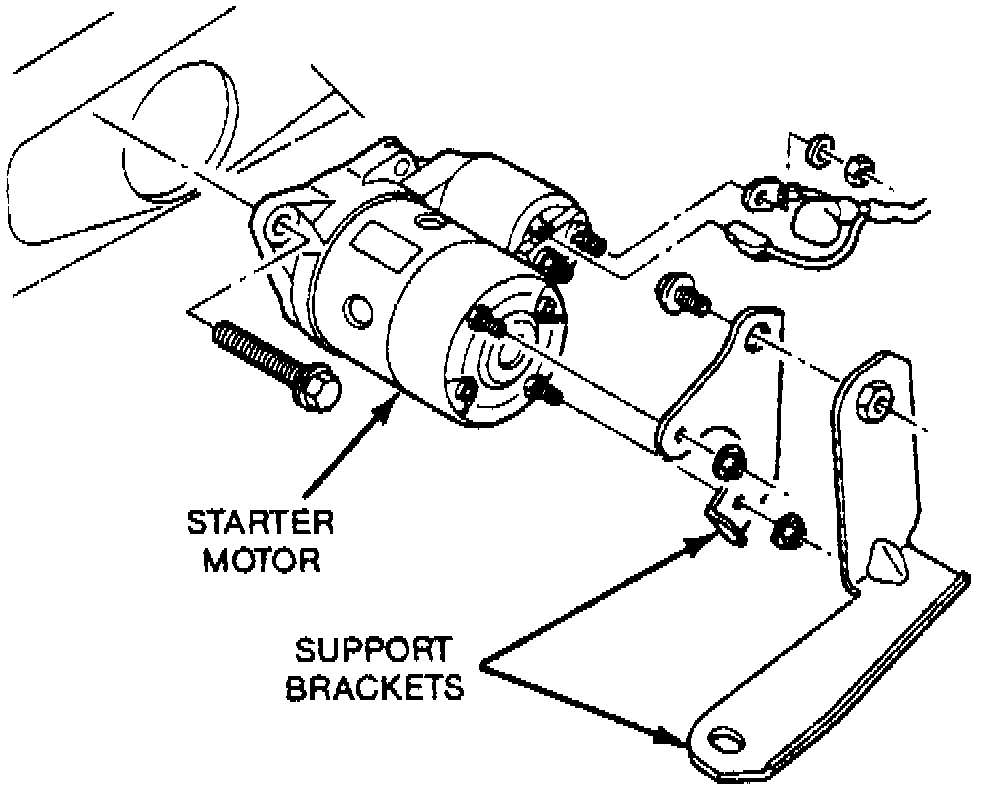

Starter Motor Replacement:

2. Disconnect all electrical connections at starter
3. Remove starter motor support bracket to transaxle attaching bolts.
4. Remove starter motor attaching bolts and the starter motor.
5. Reverse procedure to install. Torque starter motor retaining bolts to 23-34 ft lb.
