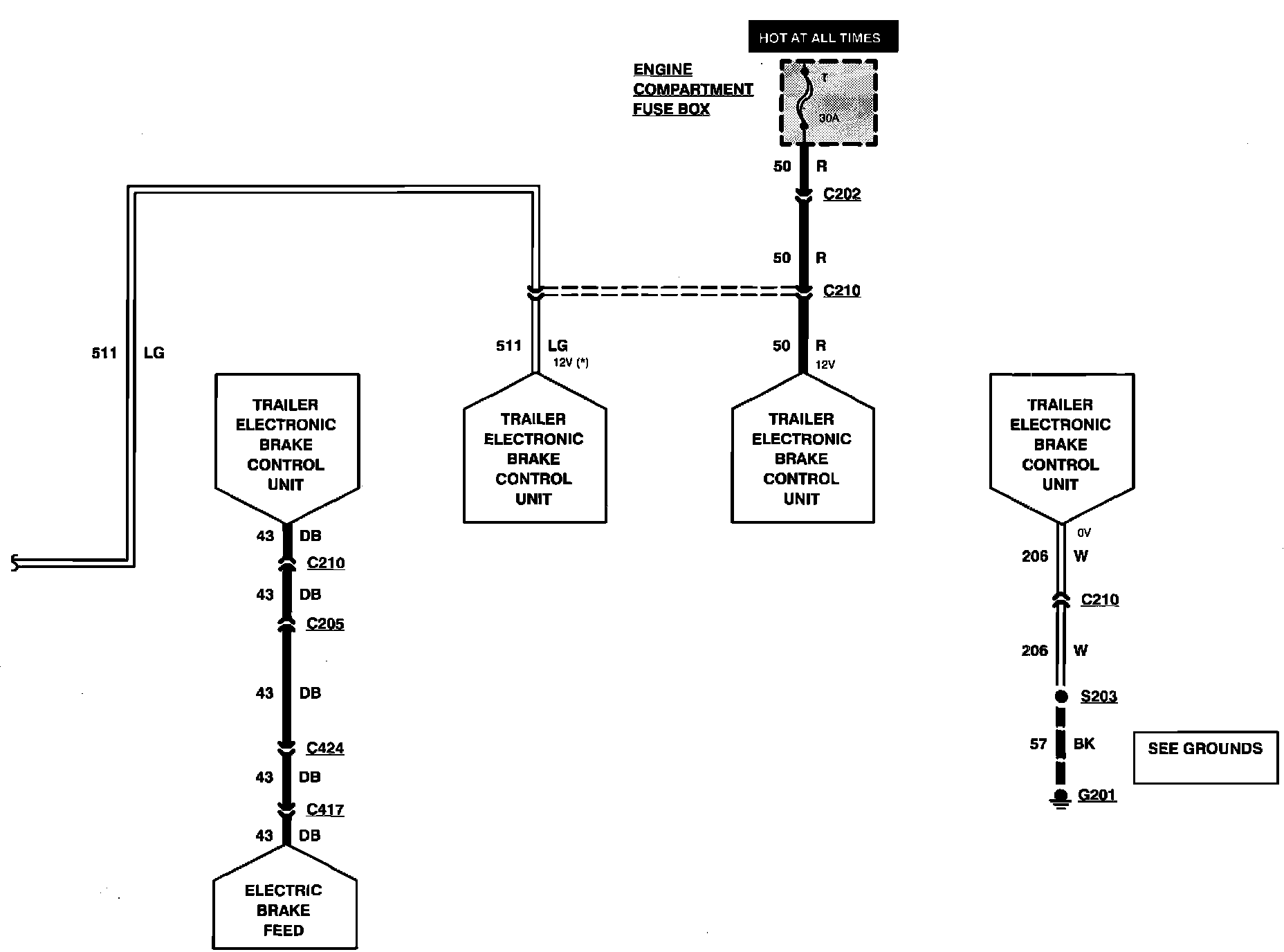

Trailer Connector
Trailer Connector
Trailer/Camper Adapter:
Part 1 of 3
Trailer/Camper Adapter:
Part 2 of 3
Trailer/Camper Adapter:
Part 3 of 3
