Home
>>
Ford
>>
1994
>>
E 350 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

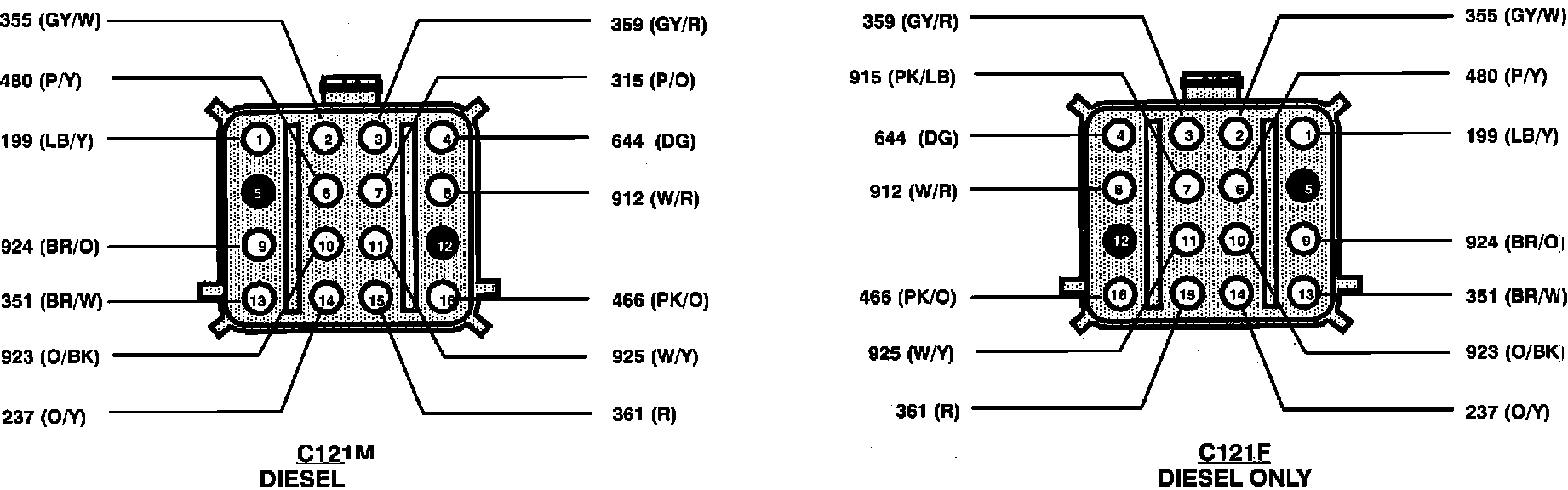

Multiple Junction Connector
>>
C121
C121
Connector Face Identification:
