Expansion Valve: Service and Repair

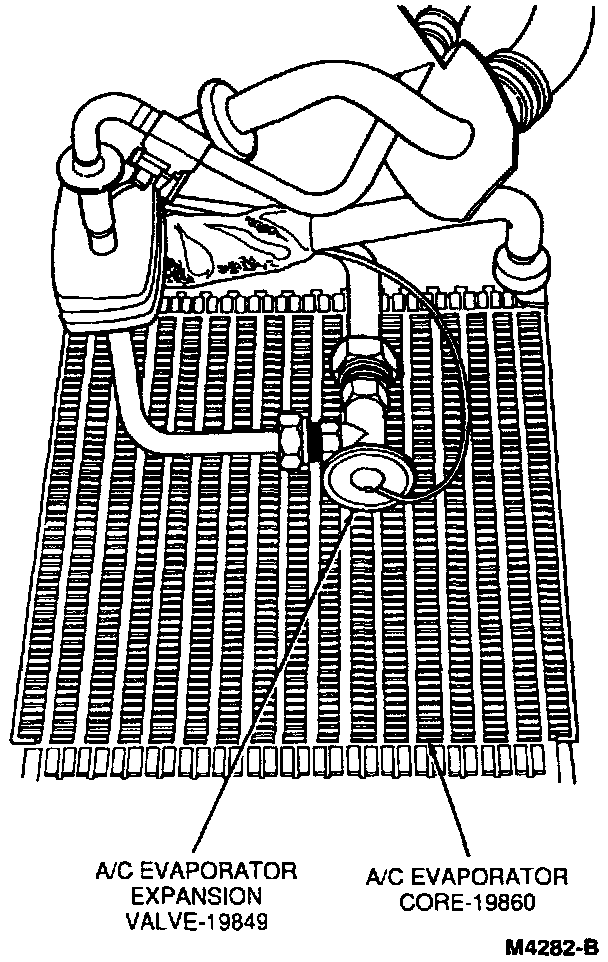

A/C Evaporator Expansion Valve And Core:

REMOVAL
1. Remove the A/C evaporator core (19860) and A/C evaporator core seal (19A672).
2. Using a backup wrench to prevent damage, disconnect the air conditioner liquid jumper line tube-O connection from the A/C evaporator expansion valve (19849).
3. Using a backup wrench to prevent damage, disconnect the A/C evaporator expansion valve from the inlet tube-O connection. Remove the A/C evaporator expansion valve.

INSTALLATION
4. For installation, follow removal steps in reverse order.
