Powertrain Management: Application and ID

Engine Code [1]
Engine Model A-185, A-186
Engine Description 7.3L Naturally-Aspirated (NA)
Engine Displacement 7.3L (444 cid)
Cylinders V-8
Fuel Type Diesel
Firing Order 1-2-7-3-4-5-6-8
Right Bank Of Cylinders 1-3-5-7
Left Bank Of Cylinders 2-4-6-8

Remarks:

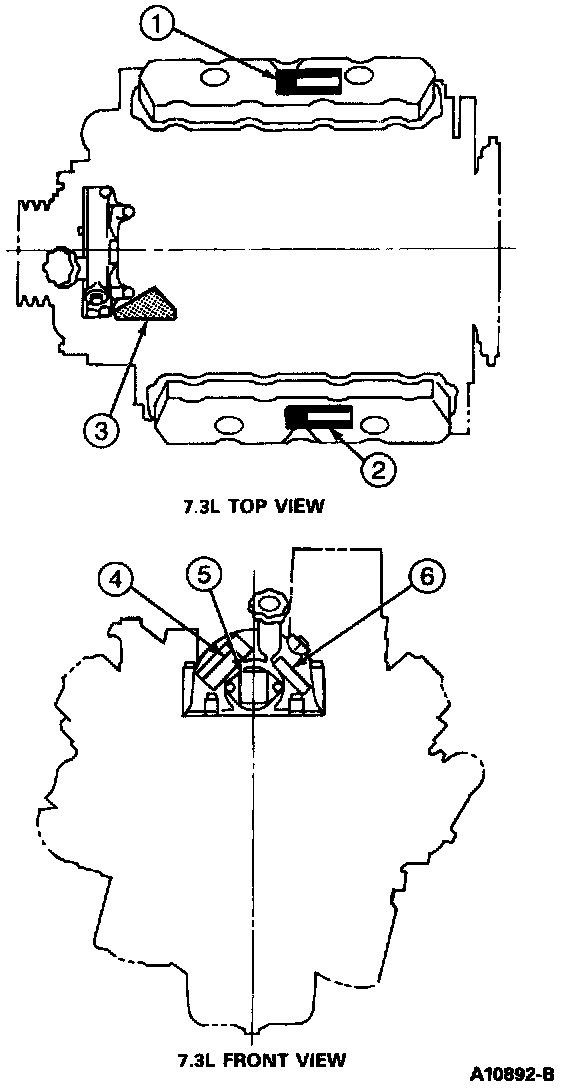

[1] The engine code label is affixed to the gear tower.

Engine Identification:

NOTE: Always refer to the engine code label when replacement parts are required or when checking engine calibrations. Some engine parts may vary with engine application and vehicle type. The codes contain information relating to dates, optional equipment and revisions. The Ford Master Parts Catalog contains a complete listing of the codes and their application. Additional identification information can be found in the permanent engine serial number (stamped on the lower rear left-hand side of the crankcase), the emission label (affixed to the right valve cover), or the engine serial sequence number label or oil change information label (near the engine code label on the front of the engine).
