Air Register: Service and Repair

RIGHT REGISTER

Removal and Installation

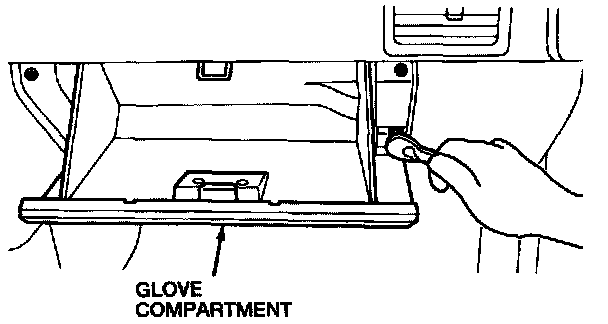

1. Remove the glove compartment.





2. Remove the instrument panel end panel.

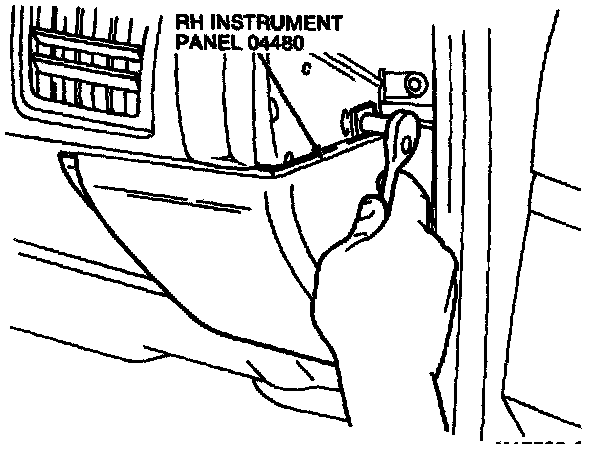

3. Remove the RH instrument panel.
4. Press the tabs and remove the right register.

To install, reverse the removal procedure.

LEFT AND CENTER REGISTERS

Removal and Installation
The left and center registers are an integral part of the instrument panel finish panel. Refer to "Instrument Panel, Gages, and Warning Indicators" for instrument panel finish panel removal and installation procedures.
