Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
F 150 4WD Pickup V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests (Intermittent Faults/Symptoms)
>>
D - PIP
>>

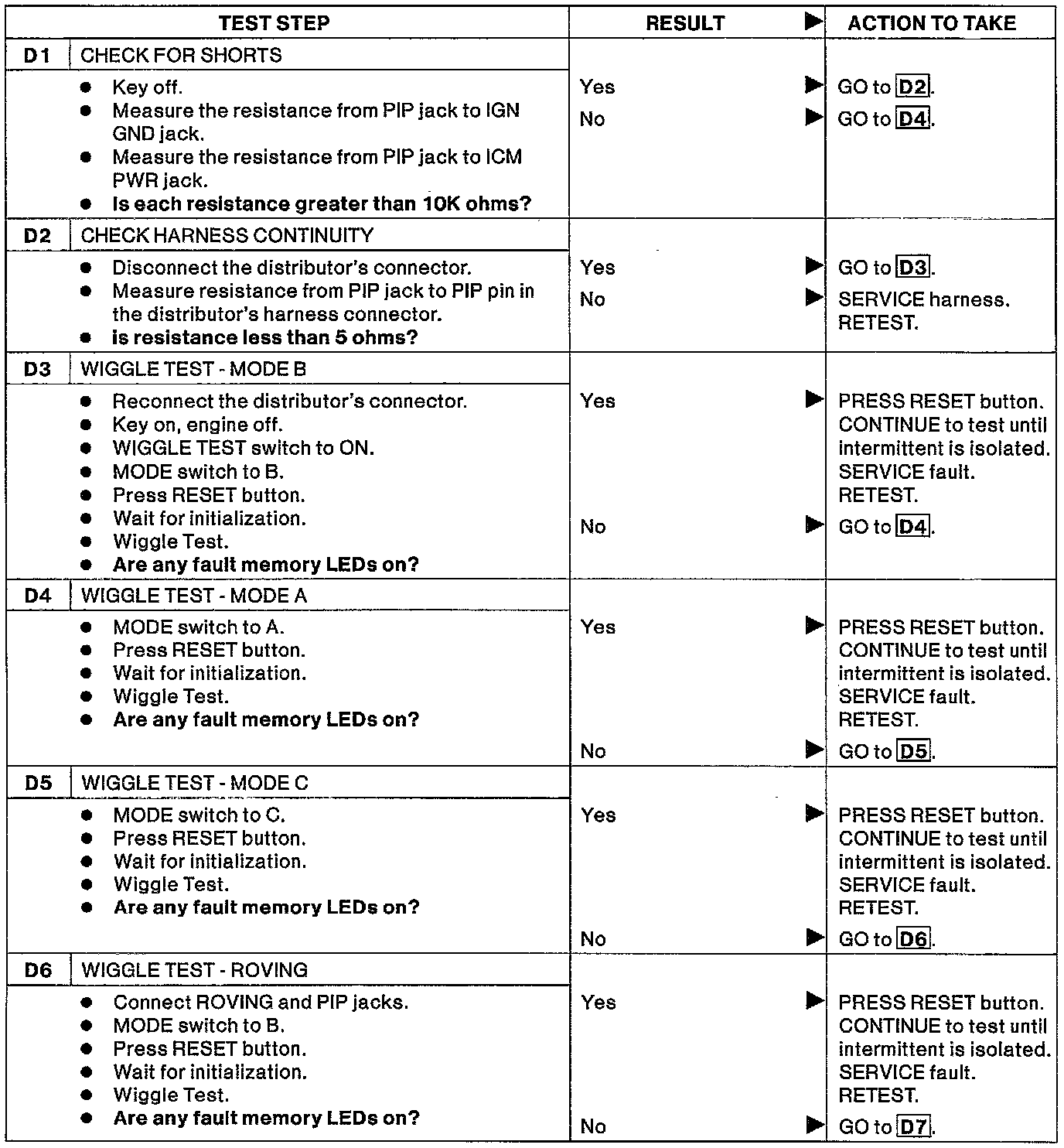

D1-D6
D1-D6
