Fuel Tank Selector Switch
>>
Testing and Inspection
>>
Pinpoint Tests
Pinpoint Tests

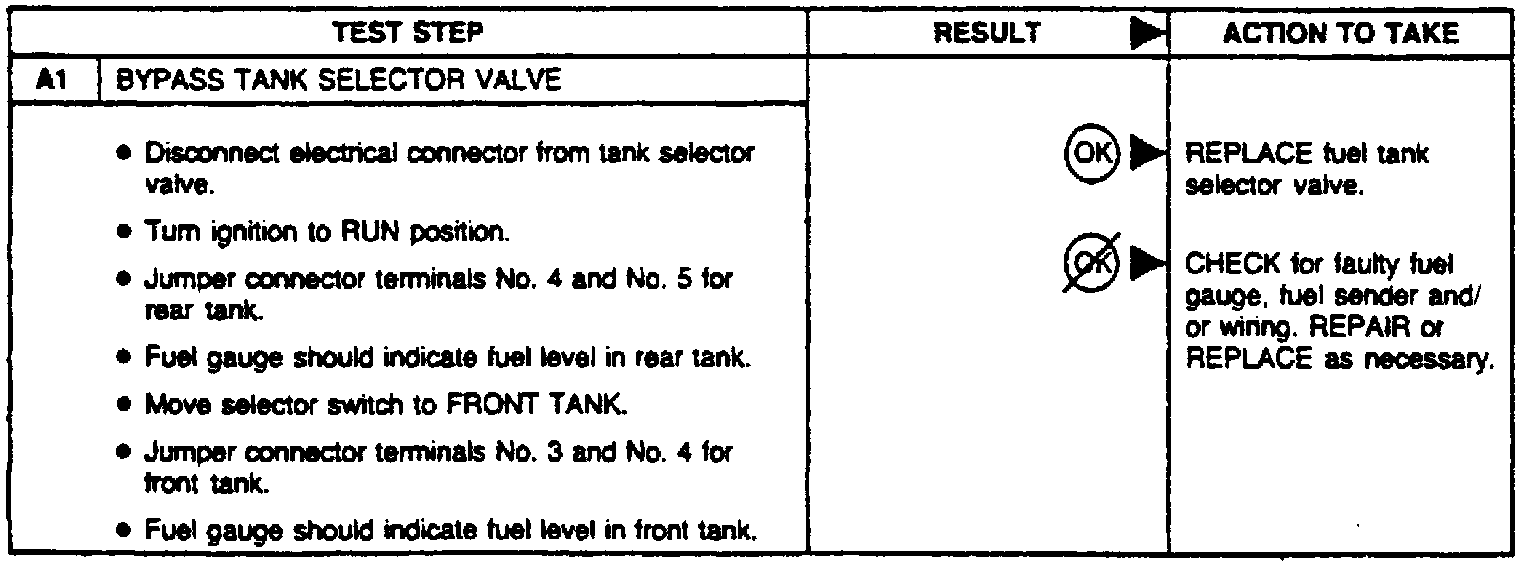

Troubleshooting Chart, No Fuel Level Indication.:
No fuel level indication.
