Connector Pin Usage

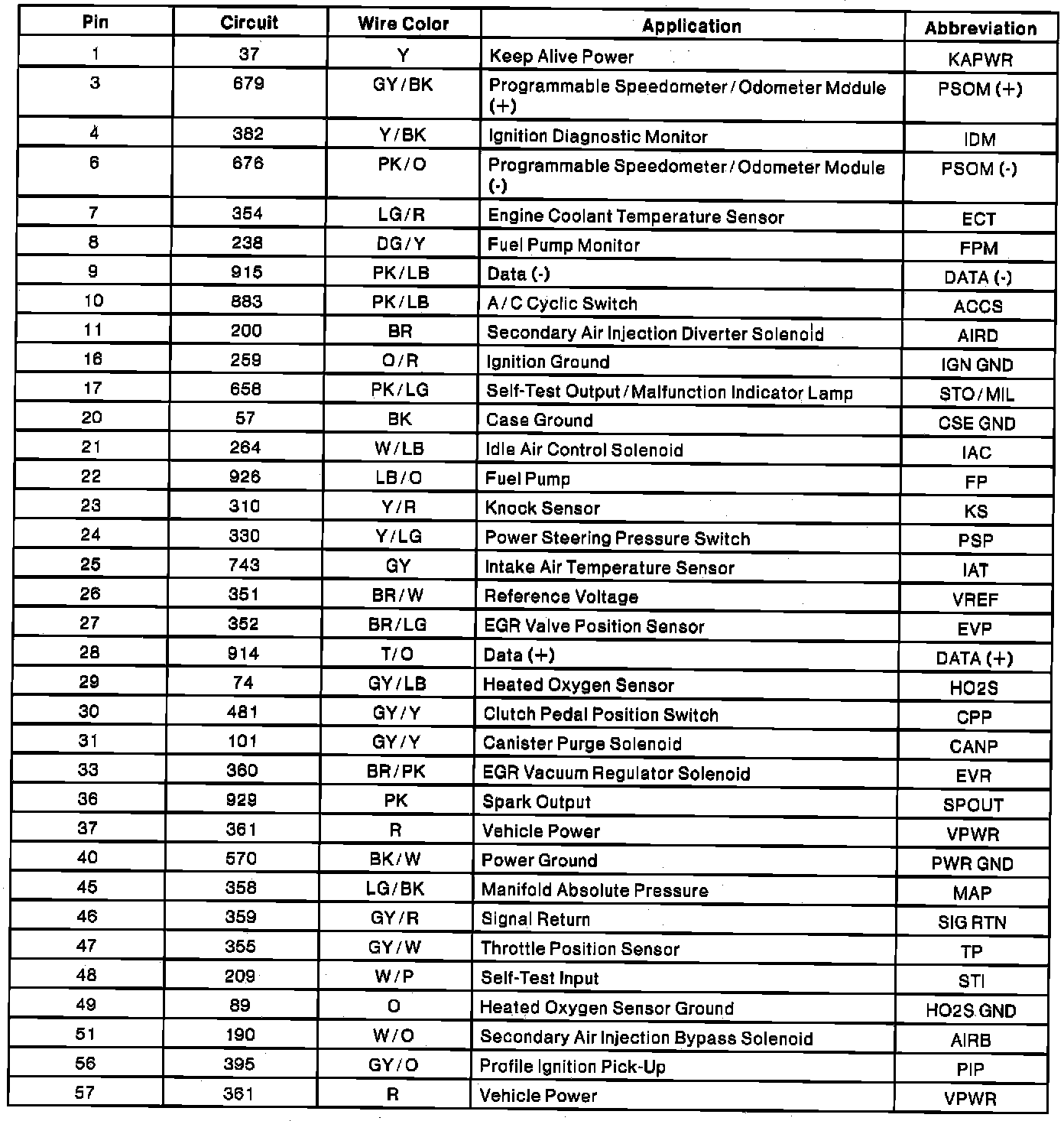

Powertrain Control Module Connector Pin Useage W/Multiport Injection:

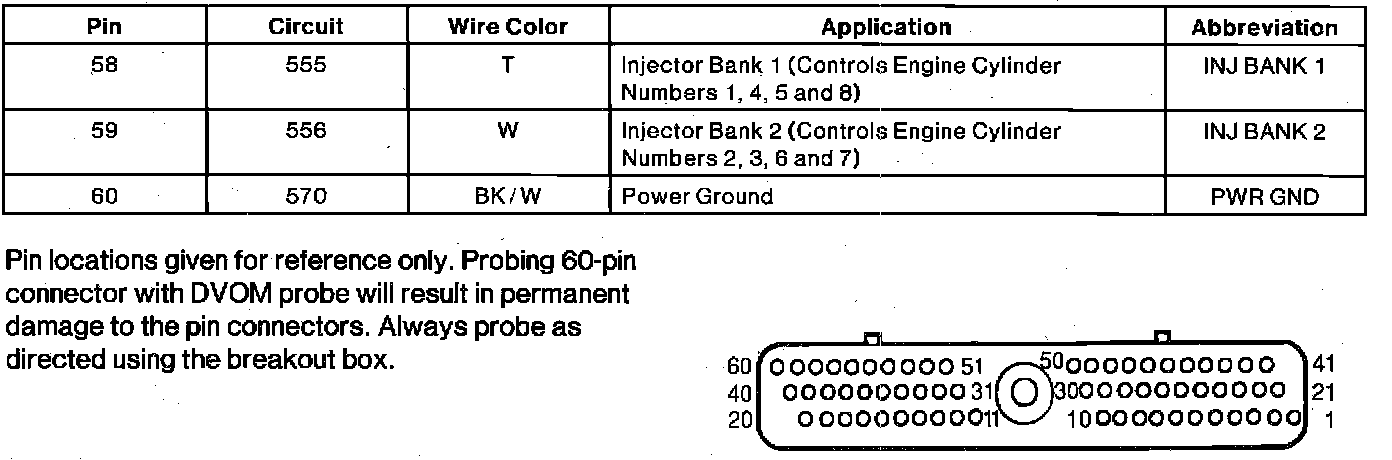

Powertrain Control Module Connector Pin Useage W/Multiport Injection:

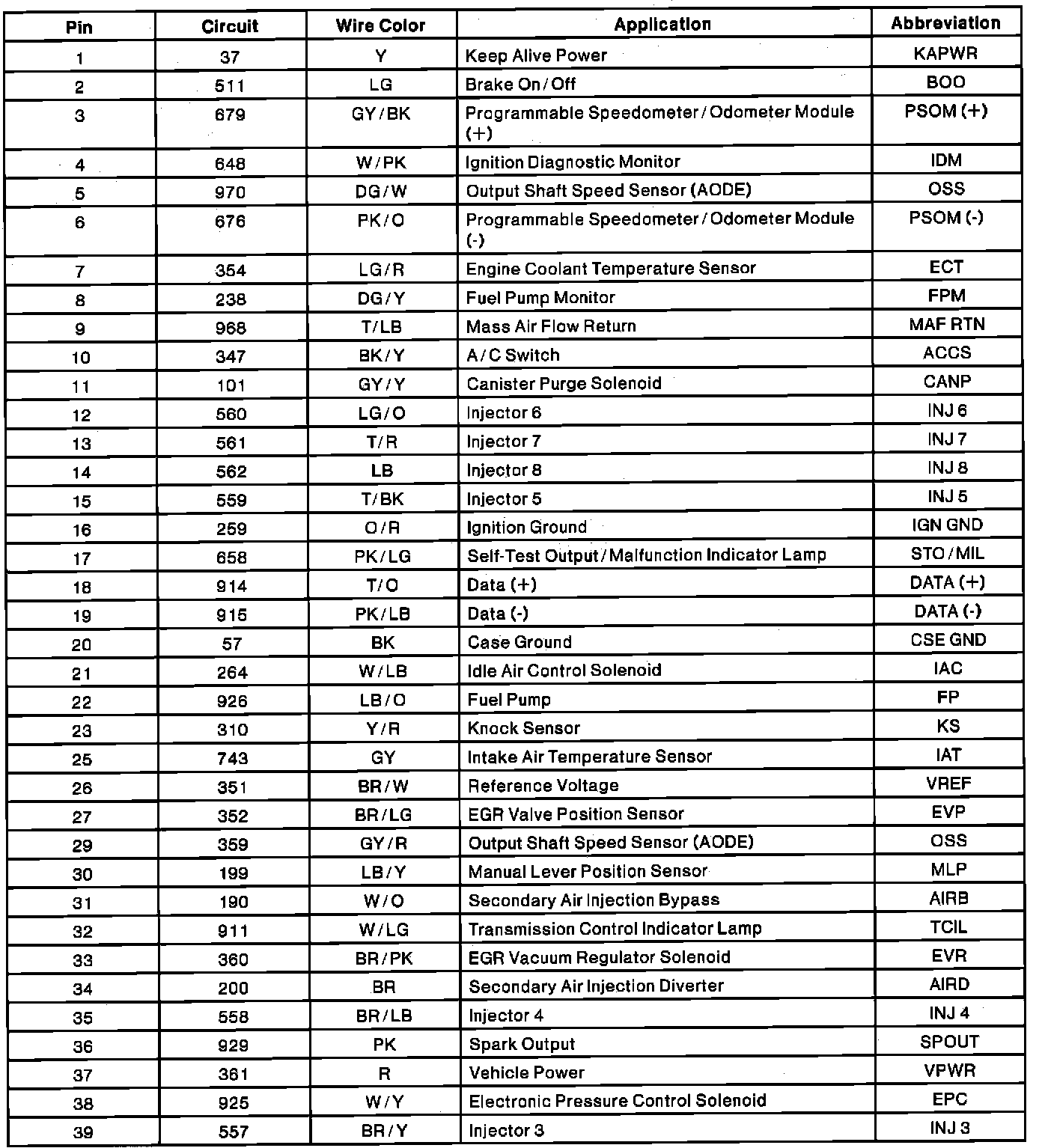

Powertrain Control Module Connector Pin Useage W/Sequential Injection:

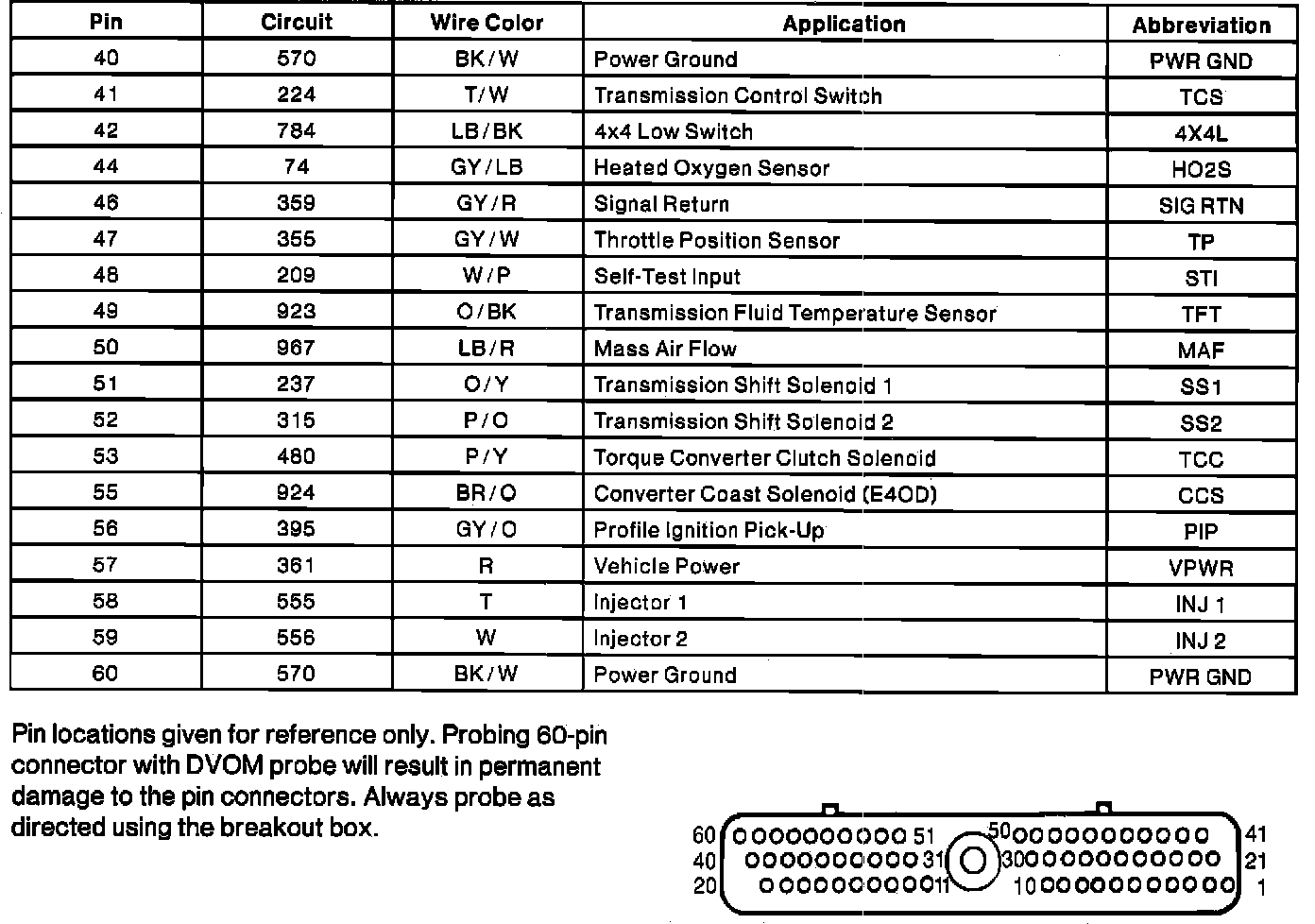

Powertrain Control Module Connector Pin Useage W/Sequential Injection:
