Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
F 150 4WD Pickup V8-302 5.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
C : Continuous Indicator - Diagnostic Monitor Disconnected/Inop
>>

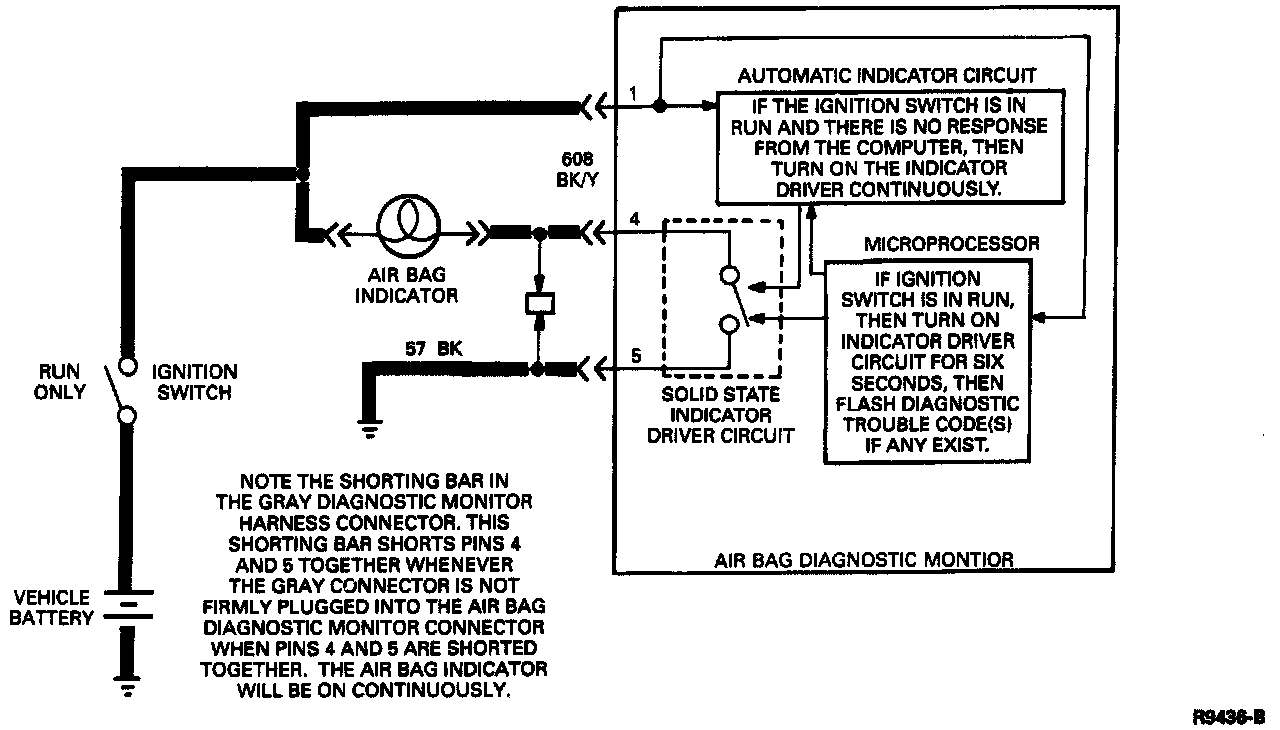

Electrical Schematic
Electrical Schematic
