Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
F 250 2WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Differential Technical Data
Differential Technical Data

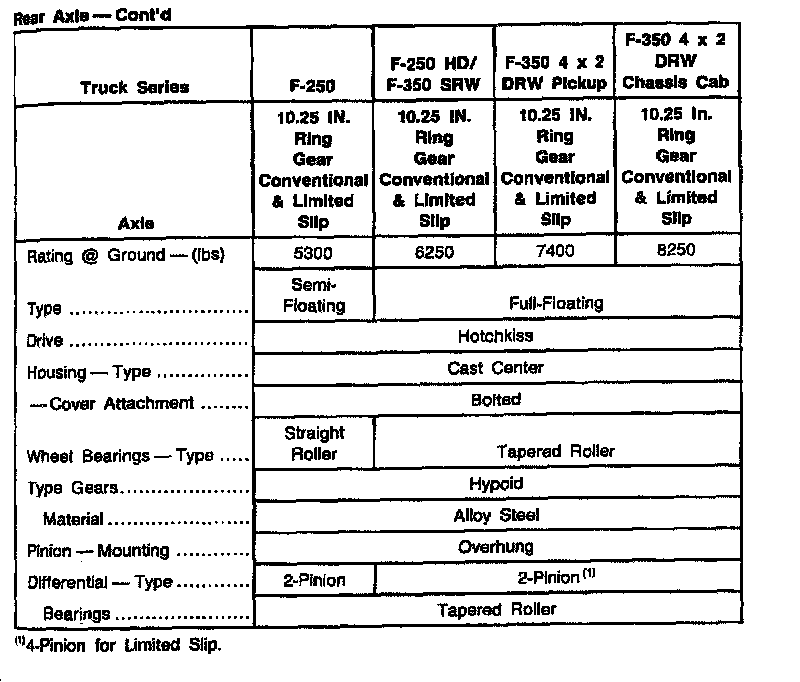

Ford 10.25 Inch/Traction Lok 10.25, Differential Data:
