Home >> Ford >> 1994 >> F 350 2WD Pickup V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Accessories and Optional Equipment >> Relays and Modules - Accessories and Optional Equipment >> Alarm Module >> Diagrams

Alarm Module: Diagrams

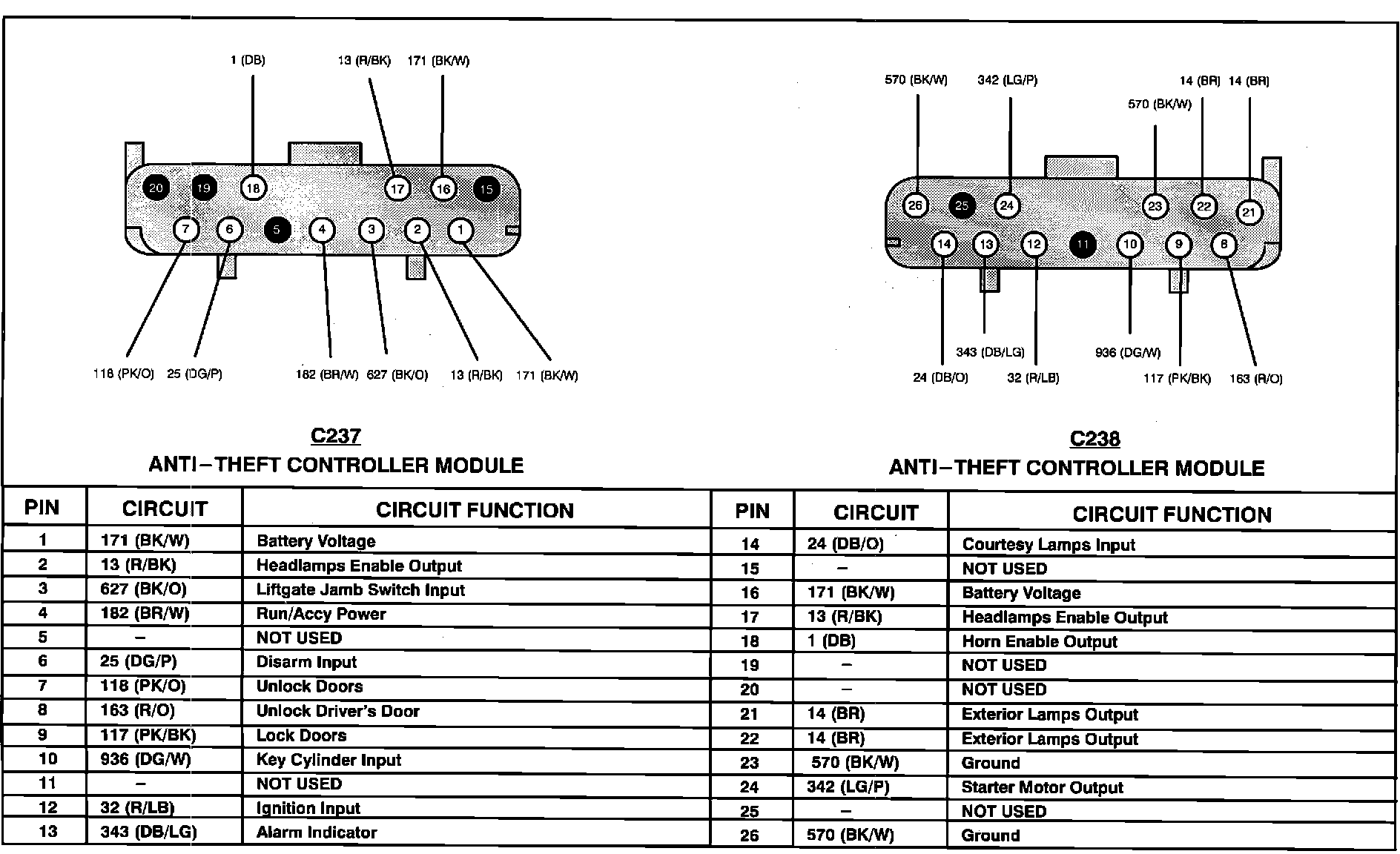

Anti-Theft Controller Module:
