Home
>>
Ford
>>
1994
>>
F 350 2WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C202
C202

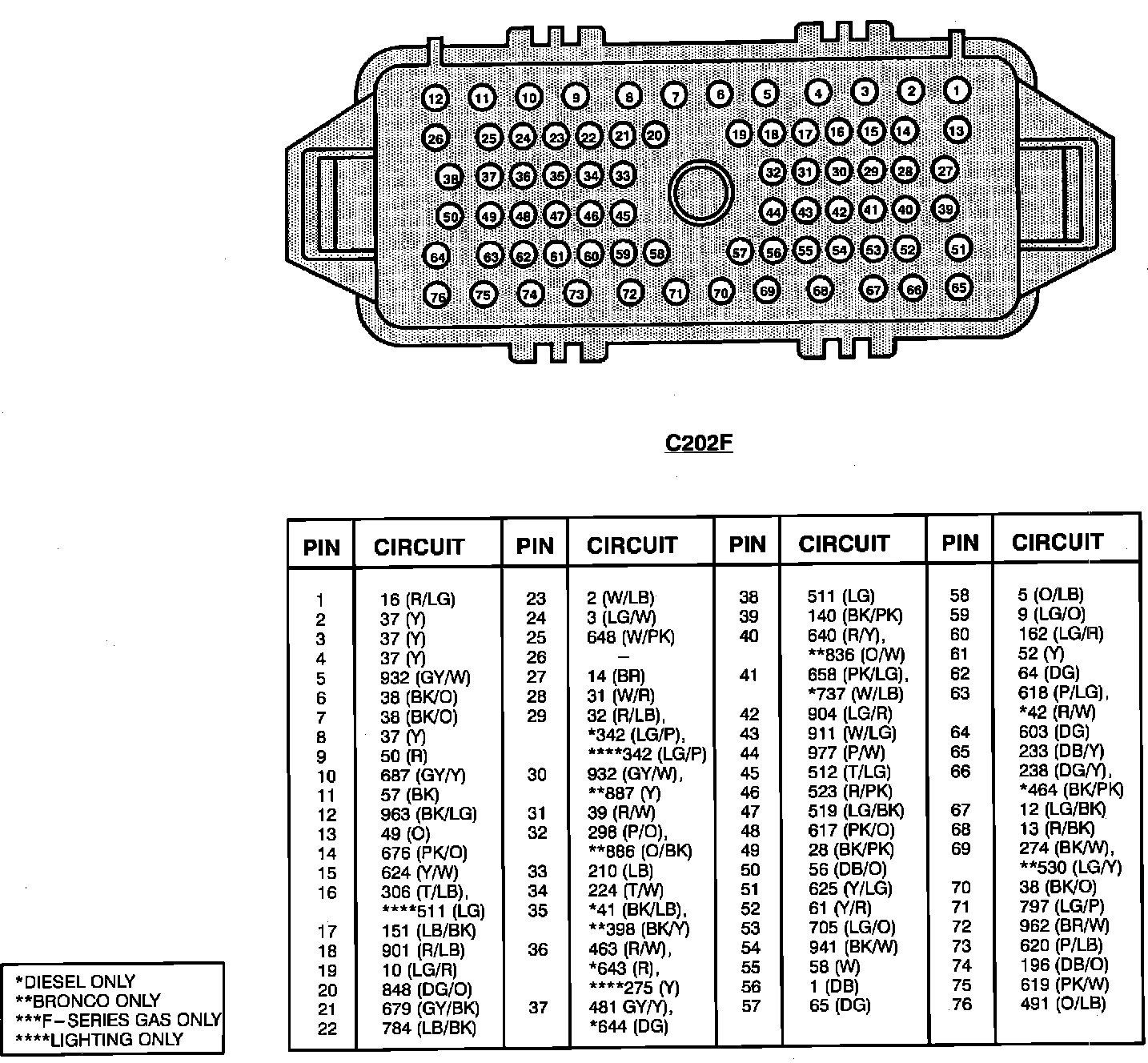

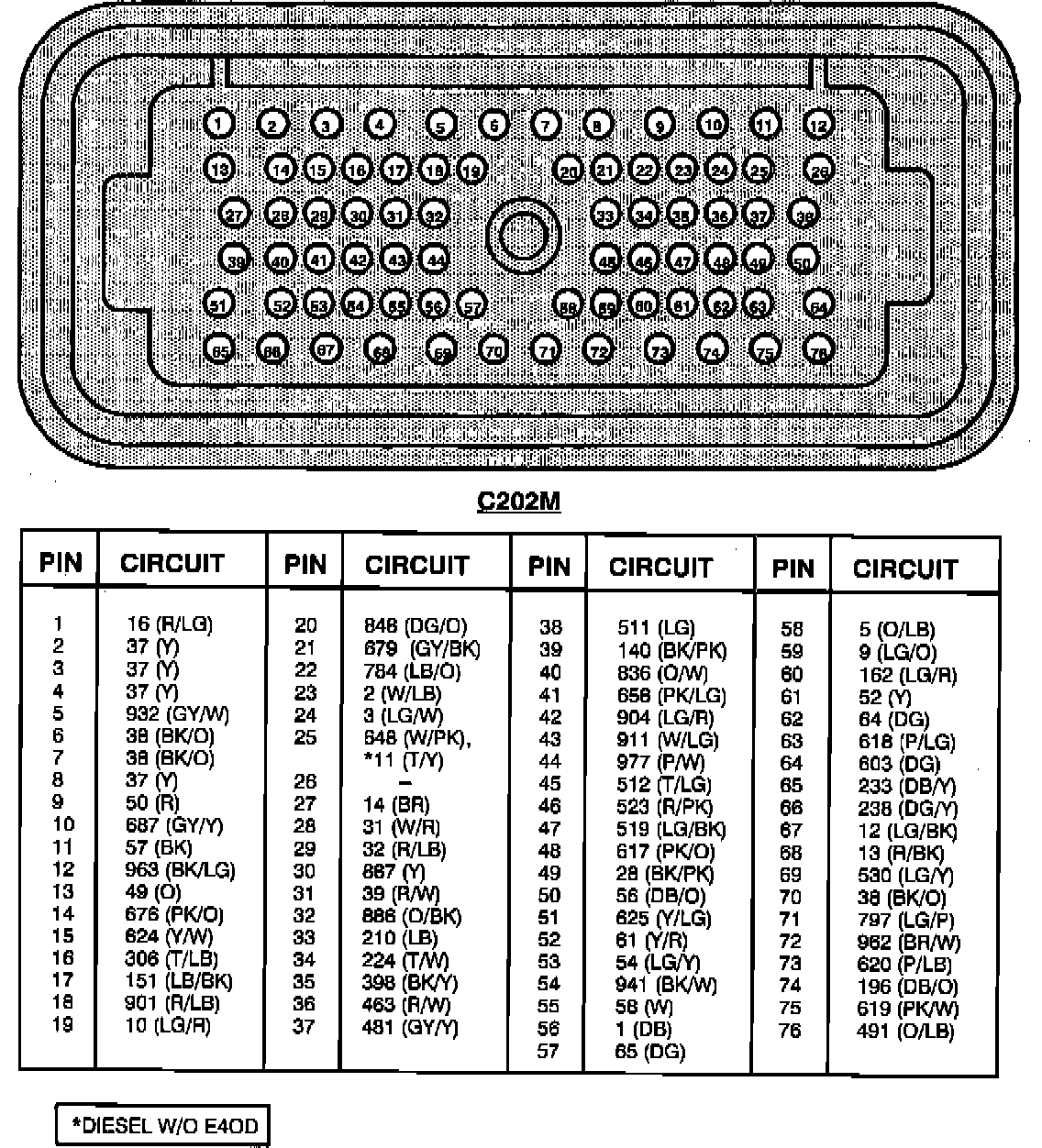

Connector Identification:
Connector Identification:
