Home >> Ford >> 1994 >> F 350 4WD Pickup V8-7.3L DSL >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Without A/C

Without A/C

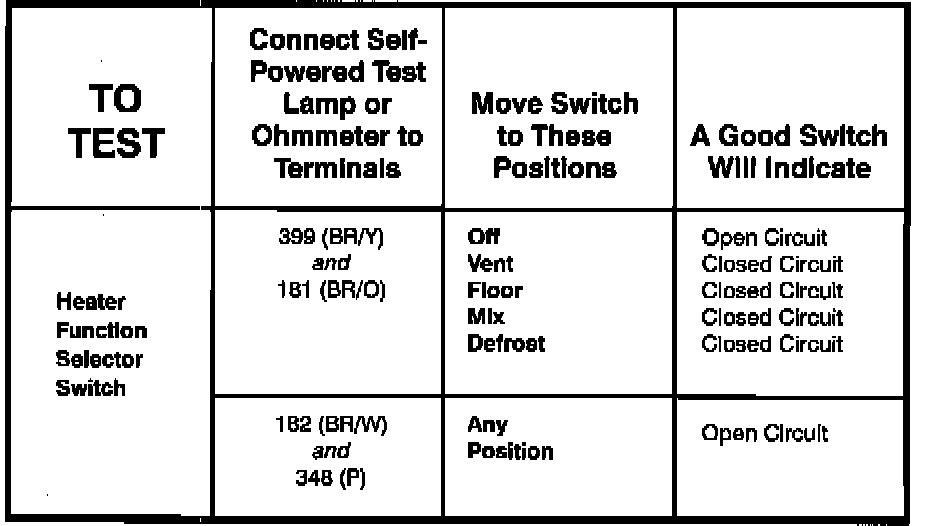

Component Testing Procedure:




COMPONENT TESTING PROCEDURE


Terminal Locations:




TERMINAL IDENTIFICATION


Heater Function Selector Switch - Schematic:




SCHEMATIC
