Expanded Diagnostic Protocol Table For NGS PIDs
Parameter Identification Access Mode 1:
Parameter Identification Access Mode 1:

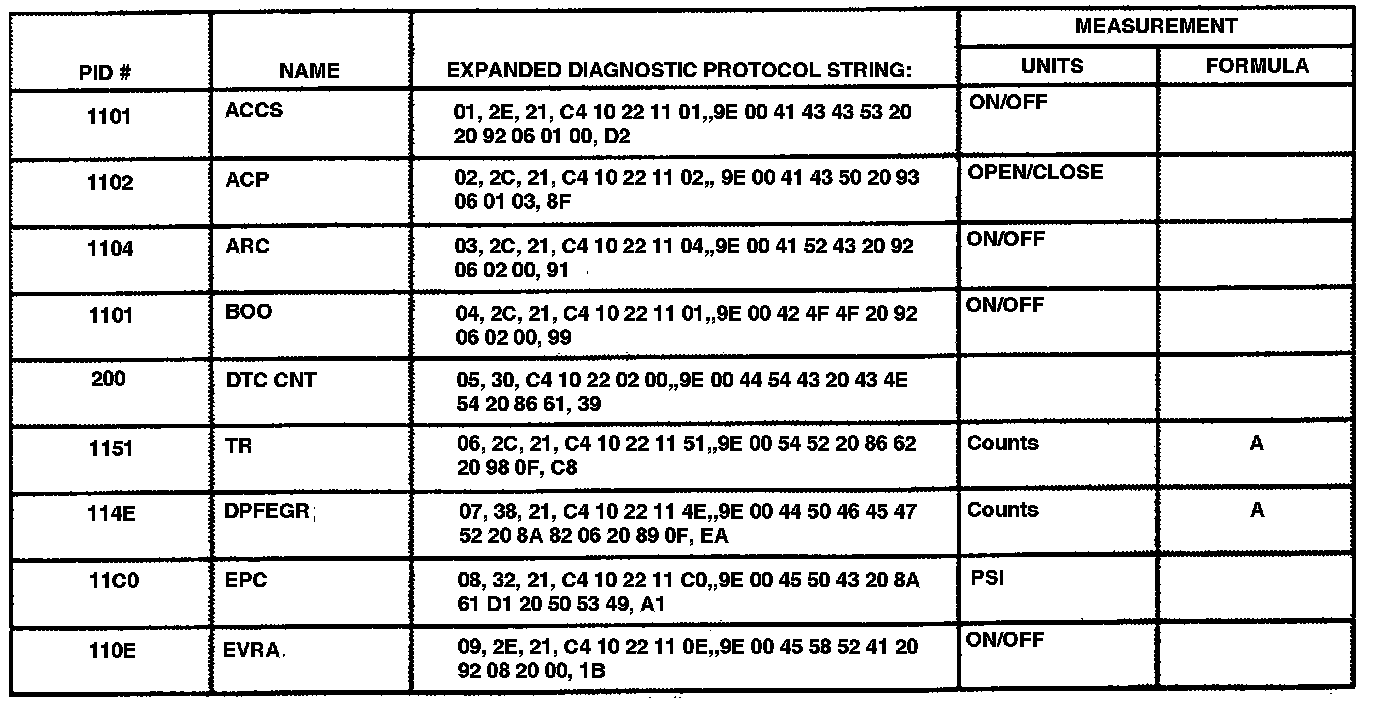

The table lists the string of characters entered in a generic scan tool when accessing the enhanced diagnostic PID information that may not be common on all OBD II vehicles.

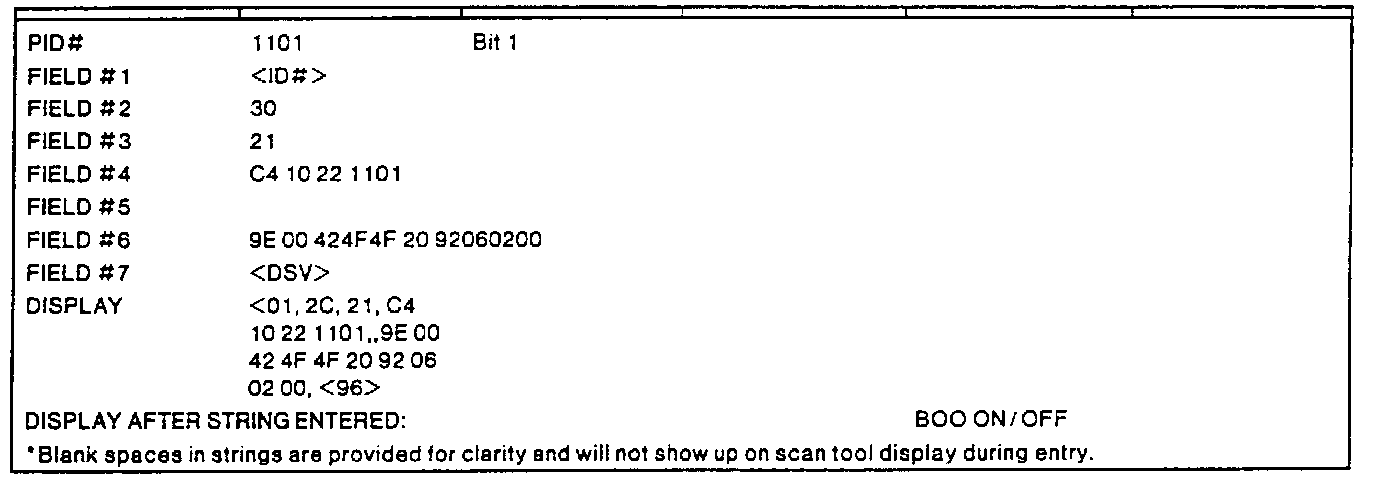

Character String Example:
The XX represents the string I.D. number and the
