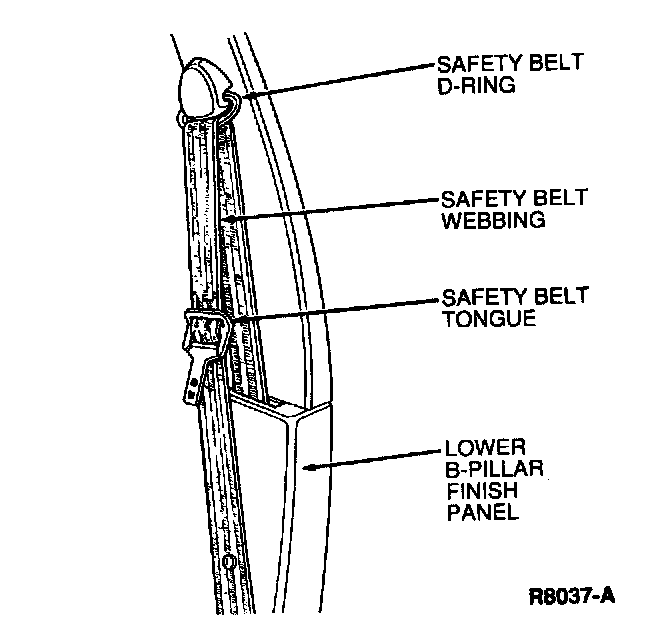

Safety Belt Tongue Rotated on Belt













Adjustment Procedure

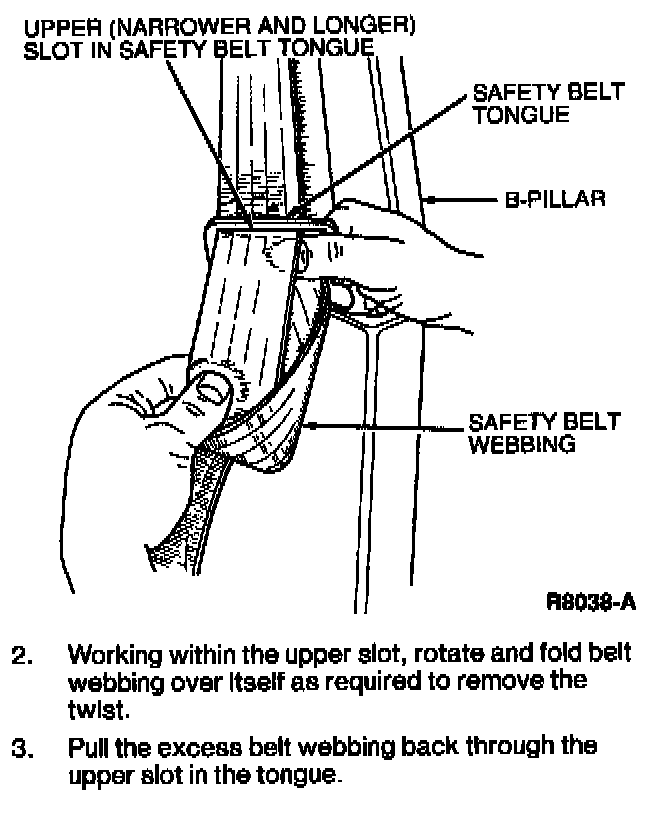

1. Grasp belt tongue and pull down on belt webbing to form a loop through the upper (narrow and longer) slot in the tongue.
2. Working within the upper slot, rotate and fold belt webbing over itself as required to remove the twist.
3. Pull the excess belt webbing back through the upper slot in the tongue.

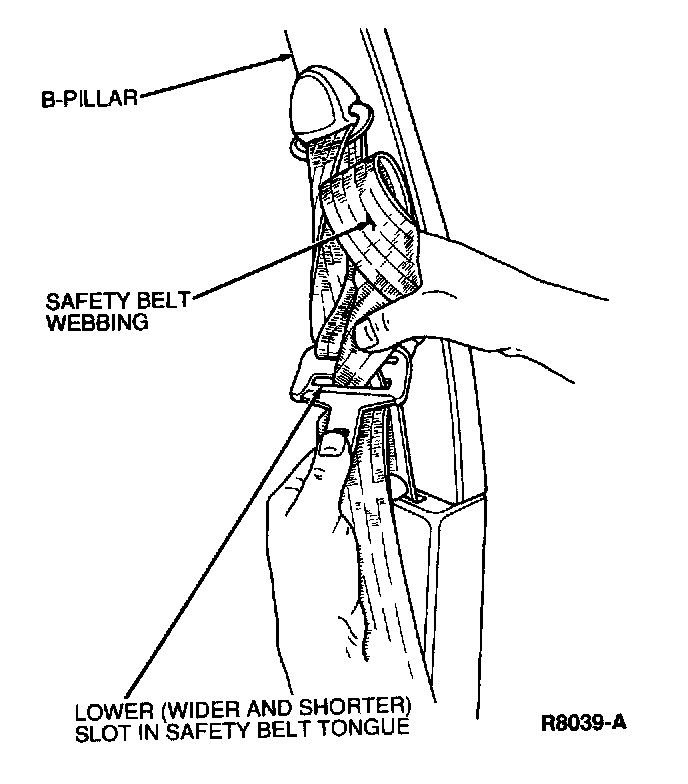

4. Repeat Steps 1, 2 and 3 to complete the removal of the twist at the lower (wider and larger) slot in the tongue.
