Vacuum Vent Valve: Adjustments

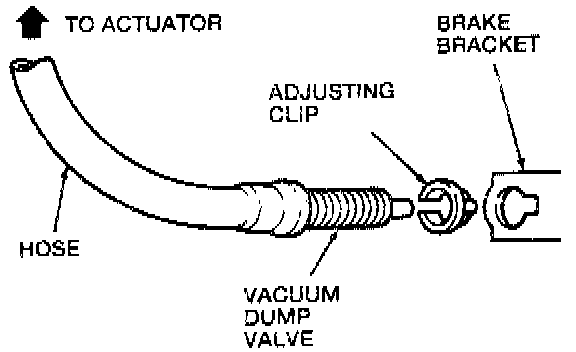

Fig. 106 Vacuum Dump Valve Replacement:

When brake pedal is released and in upright position, plunger of vacuum dump valve should protrude 4-5 mm from body. If plunger length is greater than specified, adjust valve position in adjusting clip.
