Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

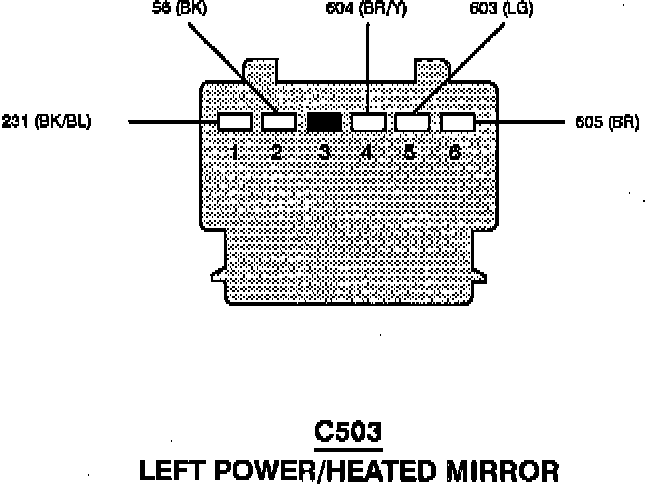

Left Power/Heated Mirror
Left Power/Heated Mirror
Left Power/Heated Mirror:
