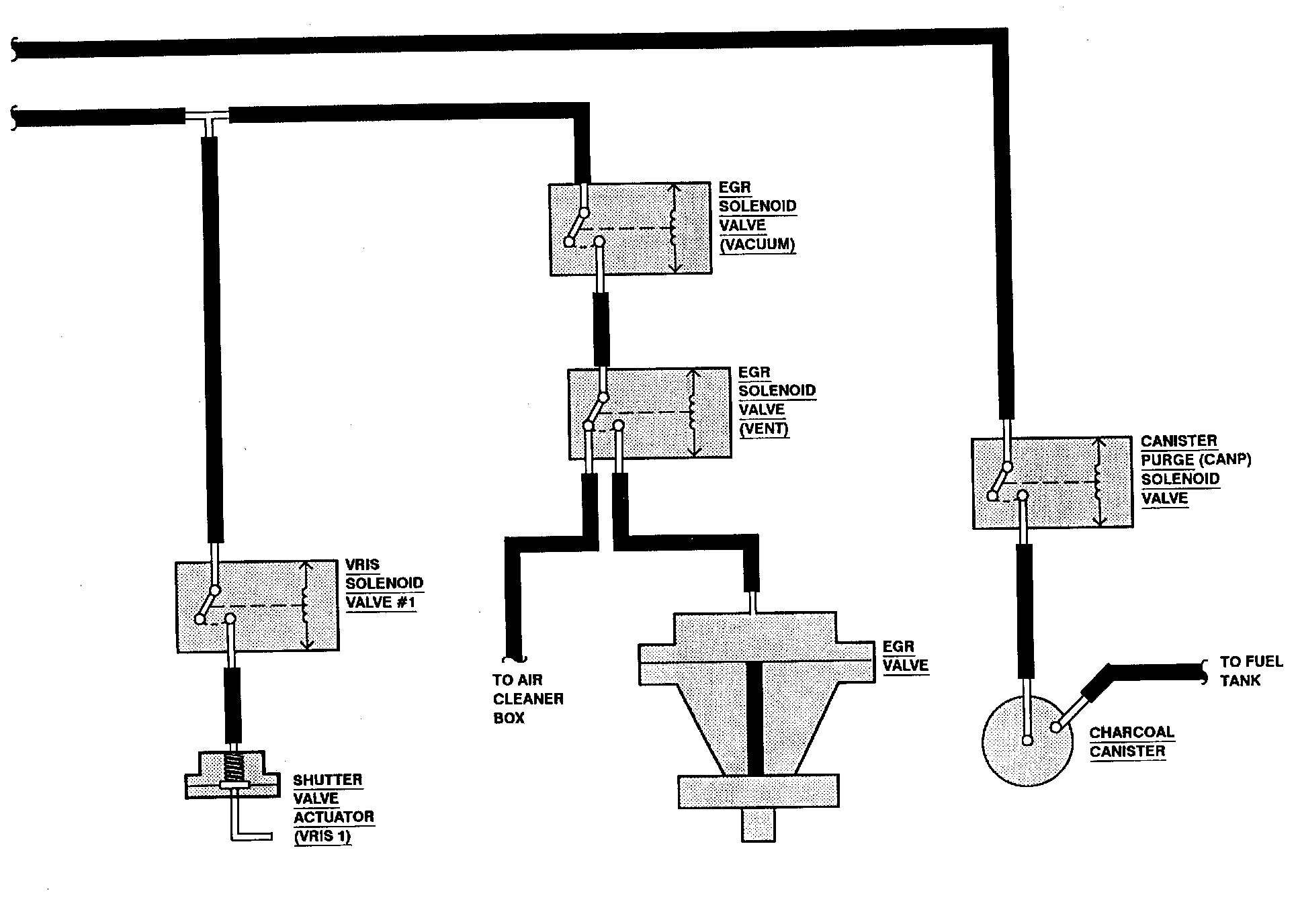

Vacuum Schematics

Part 1 Of 1:

Part 2 Of 2:

Emission Related Systems:

Component ID:

Fuel System:
