Ranger 2WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
Diagrams
>>
Connector Views
>>
With Electronic Premium Cassette
With Electronic Premium Cassette

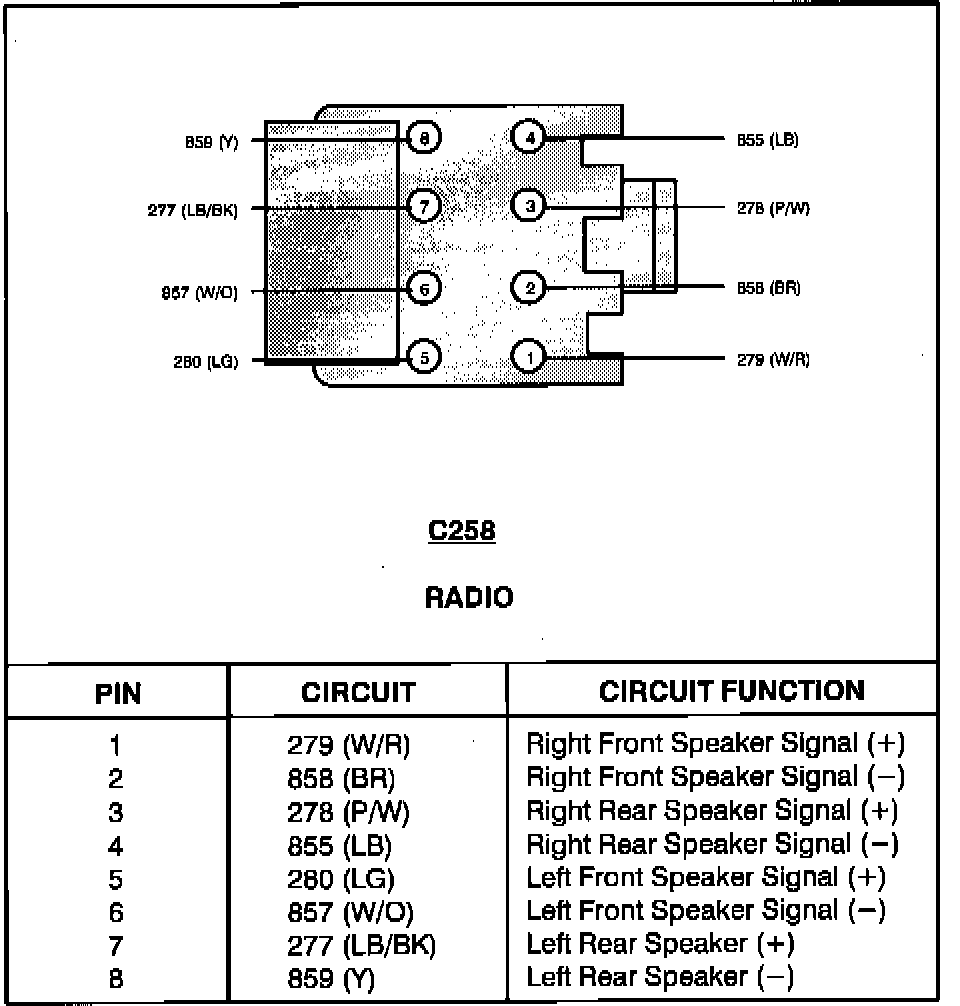

Radio:

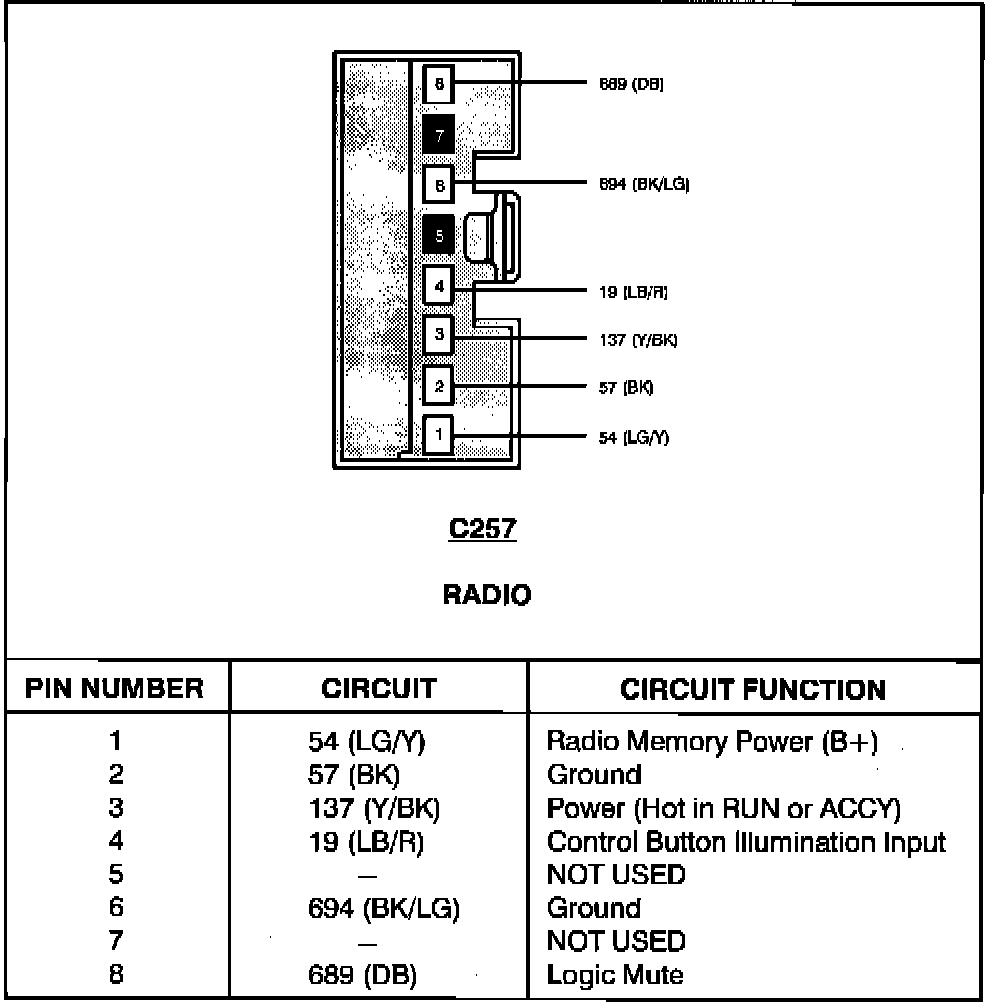

Radio:
