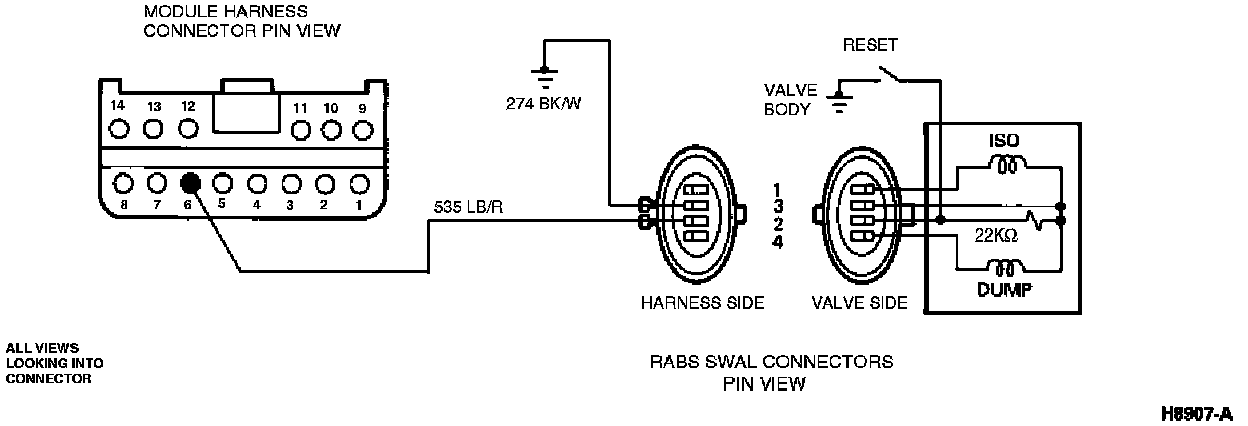

Connector:





- Set ohmmeter on 200 ohms scale.

- Measure resistance between module harness connector Pin 6 and chassis ground.

- Is resistance greater than 12 ohms?

YES -- Circuit is not shorted. Go to 4.6. 4.6

NO -- Find and Repair short circuit along Circuit 535 (LB/R). Go to 4.10. 4.10
