E7 - Check Fluid Level Switch

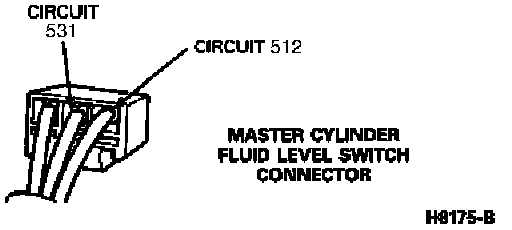

Fluid Level Switch Connector:

- Key OFF.

- With the fluid level switch harness connector disconnected, jumper between Circuits 512 (T/LG) and 531 (DG/Y).

- Key ON.

- Does the red brake light turn on?

YES -- Locate and service short to ground in Circuit 512 (T/LG). Reconnect all loose connections. Repeat E1. [1][2]E1 - Check Proper Function of Brake Lamp

NO -- Replace brake master cylinder reservoir. Perform system brake bleeding procedure. Reconnect all loose connections. Repeat E1. [1][2]E1 - Check Proper Function of Brake Lamp
