Home >> Ford >> 1994 >> Ranger 2WD L4-140 2.3L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> With Federal Emissions

With Federal Emissions

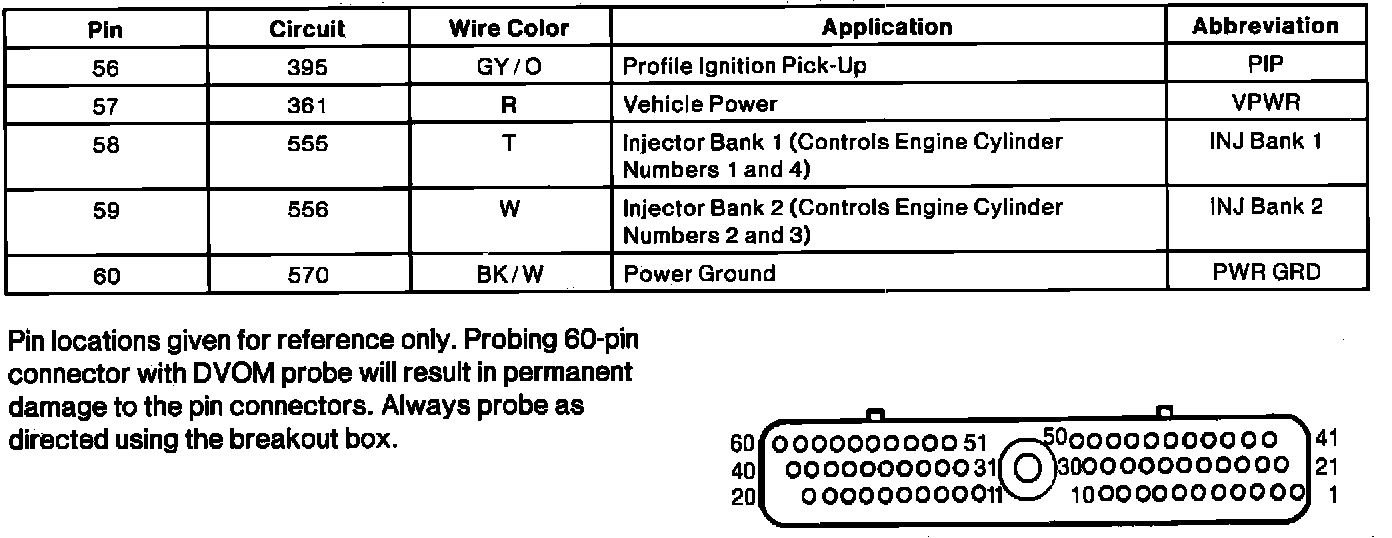

Powertrain Control Module Connector Pin Useage:

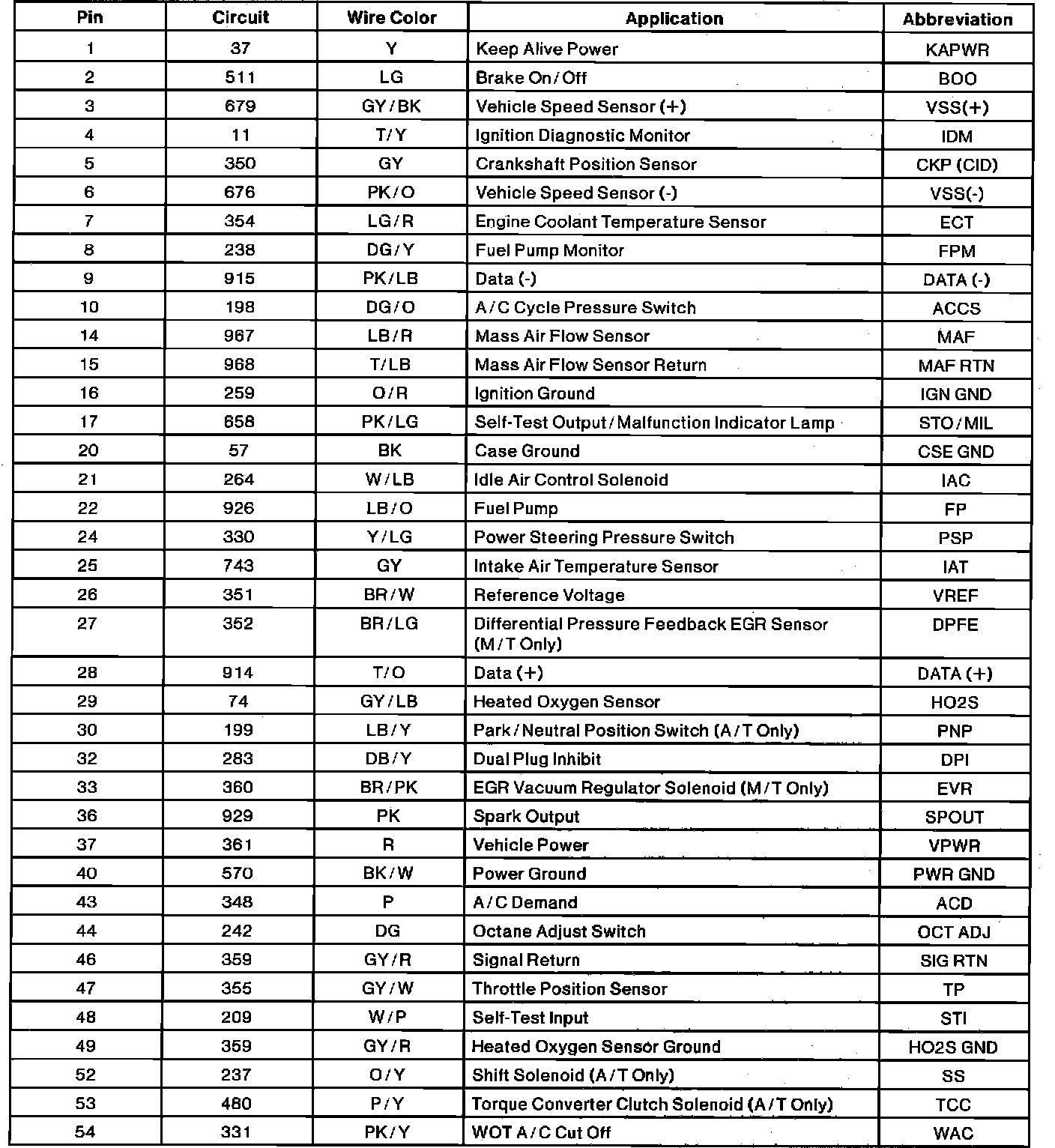

Powertrain Control Module Connector Pin Useage:
