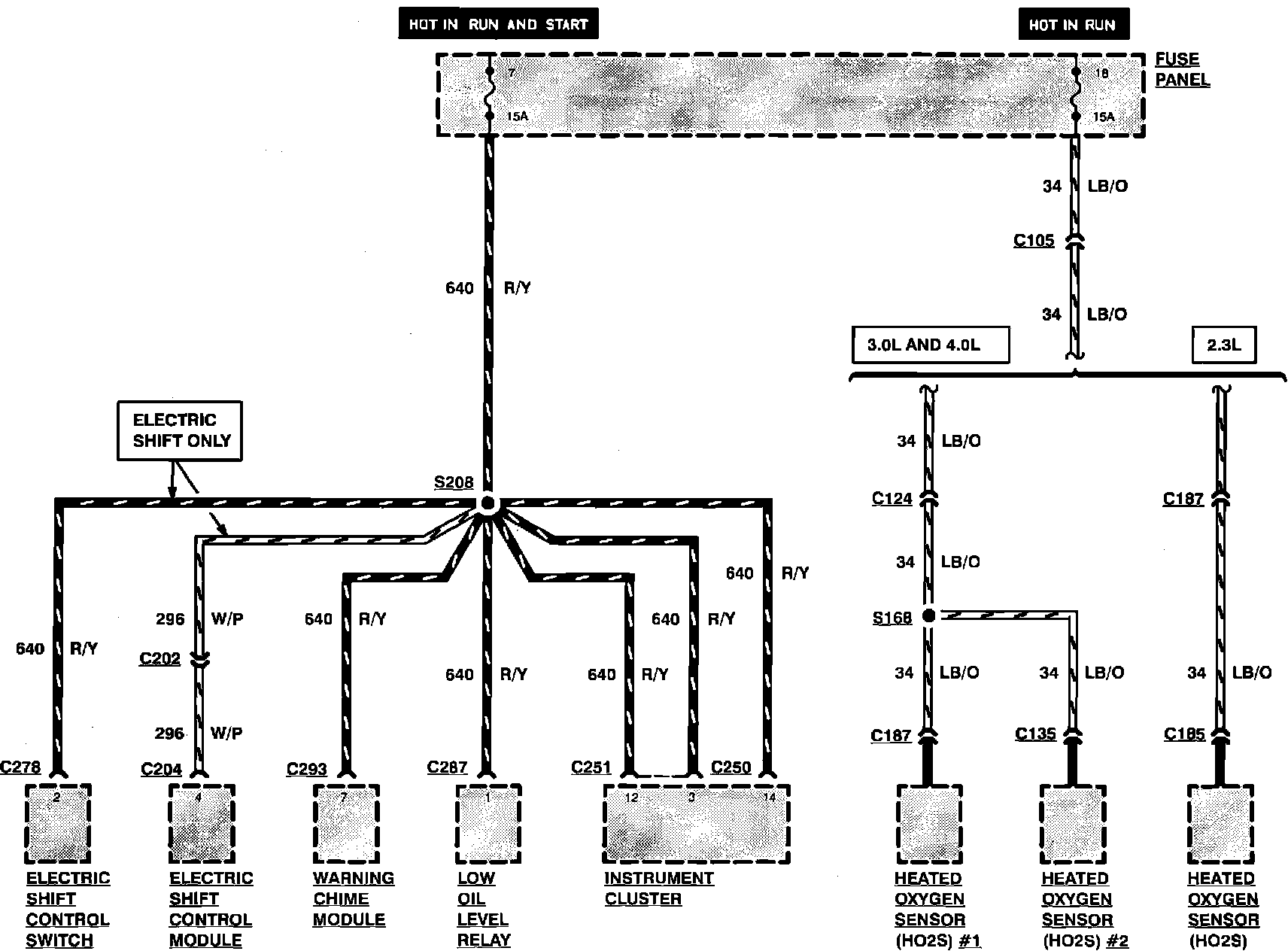

Fuse 7

Fuse 7 - protects the following circuits:
- Electric Shift Control Module
- Warning Chime Module (2 of 2 Power Feed)
- Low Oil Level Relay
- Instrument Cluster

Power Source
Power is supplied through Fuse 1 of Engine Compartment Fuse/Relay Box and Ignition Switch.
