AB3 - Check For VREF At Throttle Position Sensor



NOTE: Verify Inertia Fuel Shutoff (IFS) switch is set (button pushed in).

- Key Off.

- Disconnect Throttle Position (TP) sensor.

- Key "ON", engine "OFF".

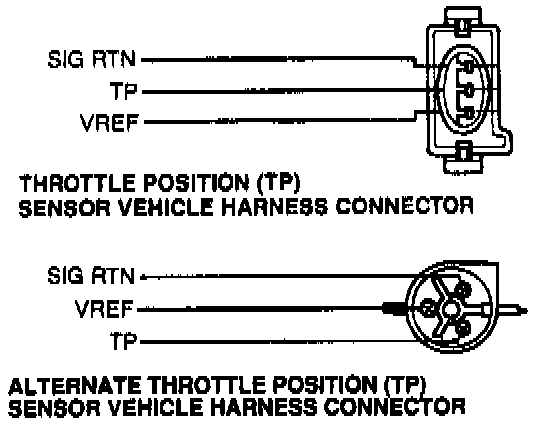

Throttle Position Sensor Harness:





- Measure voltage between VREF circuit and SIG RTN circuit at the TP sensor vehicle harness connector.

- Is voltage between 4.0 and 6.0 volts?

Yes -- Reconnect TP sensor. Go to pinpoint test step AB4. AB4 - Check For Spark At Plugs

No -- Go to pinpoint test step C1. C1 - Check Vehicle Battery Power Circuit
