23 - Visible Exhaust Smoke
23 - Visible Exhaust Smoke

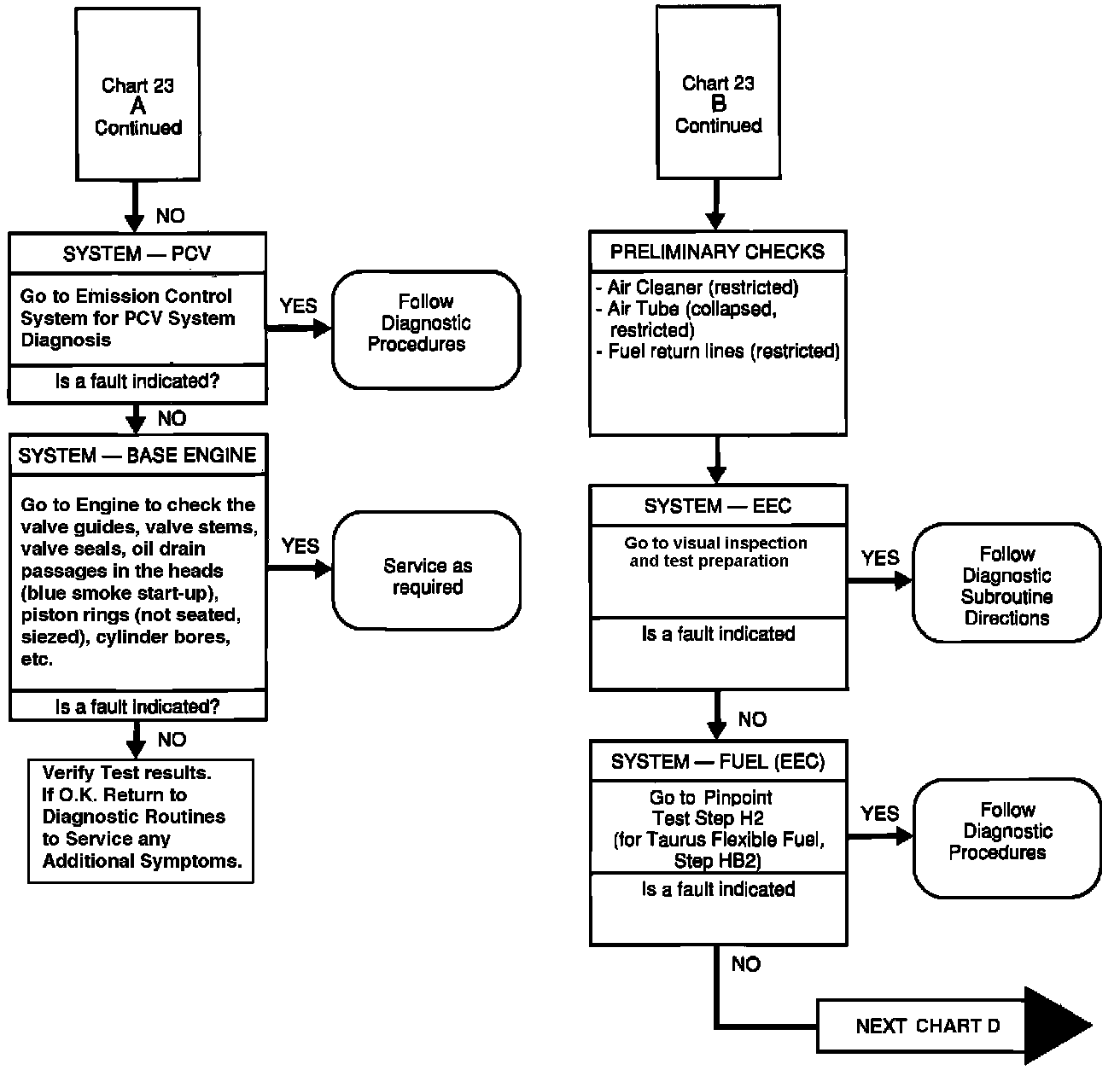

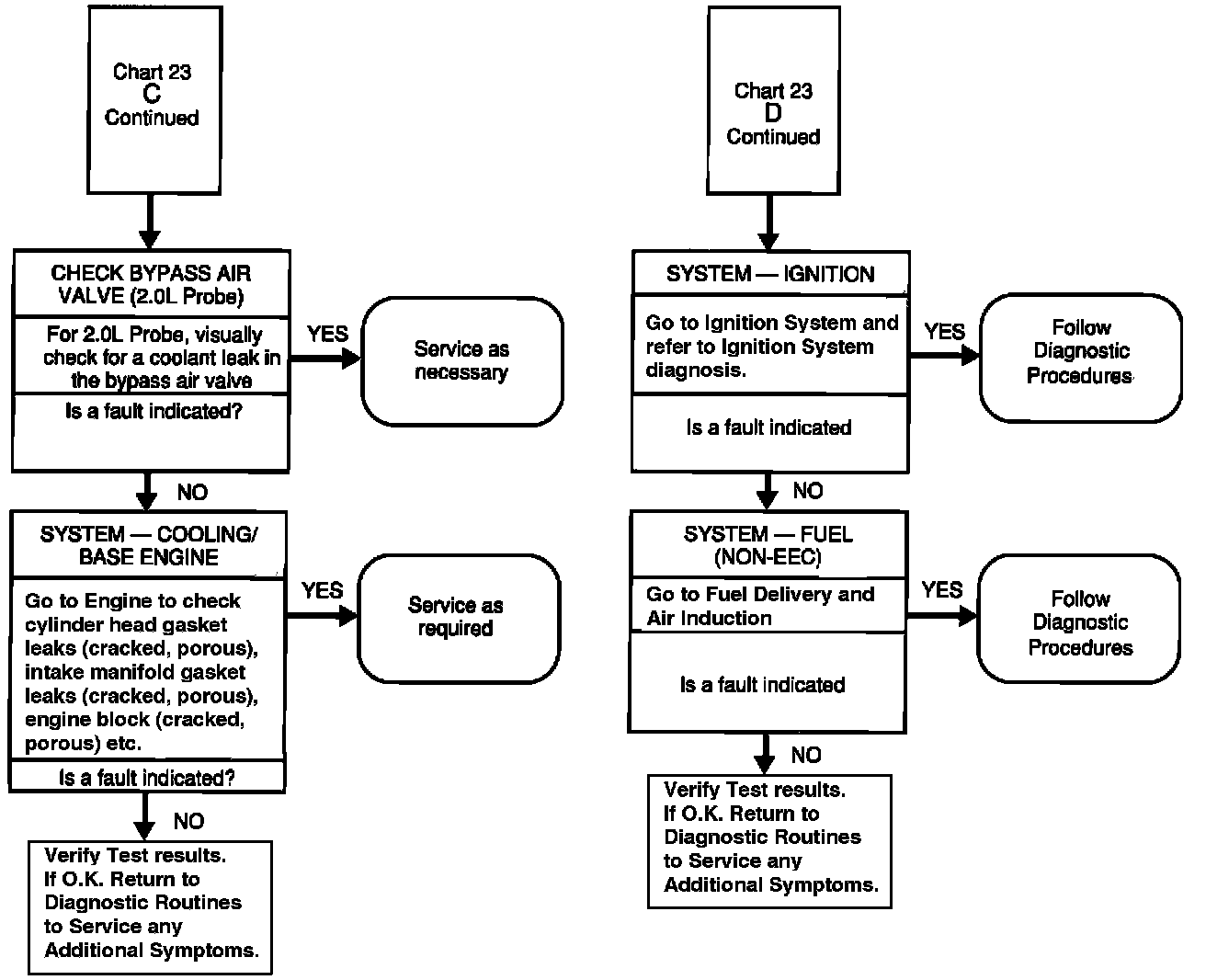

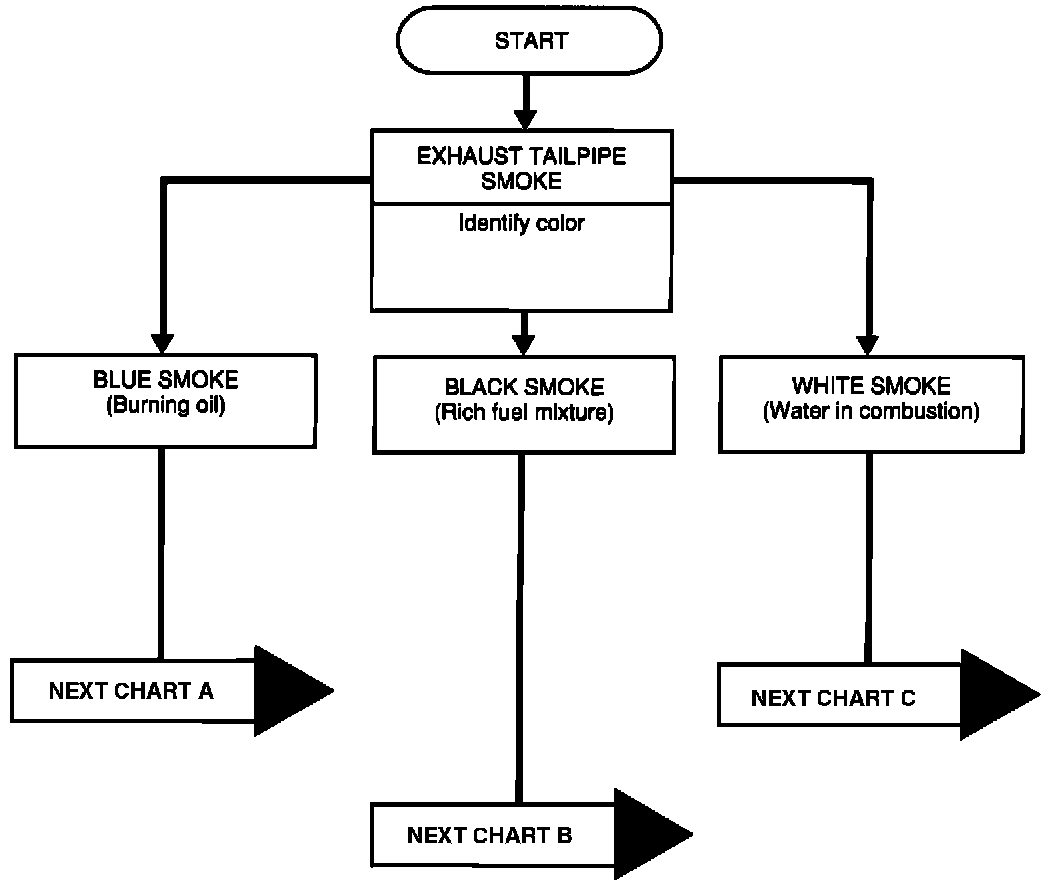

Chart 23 (Part 1 of 3):
Chart 23 (Part 2 of 3):
Chart 23 (Part 3 of 3):
