D - Wipers Continue to Run When Switch Is Off
D - Wipers Continue to Run When Switch Is Off

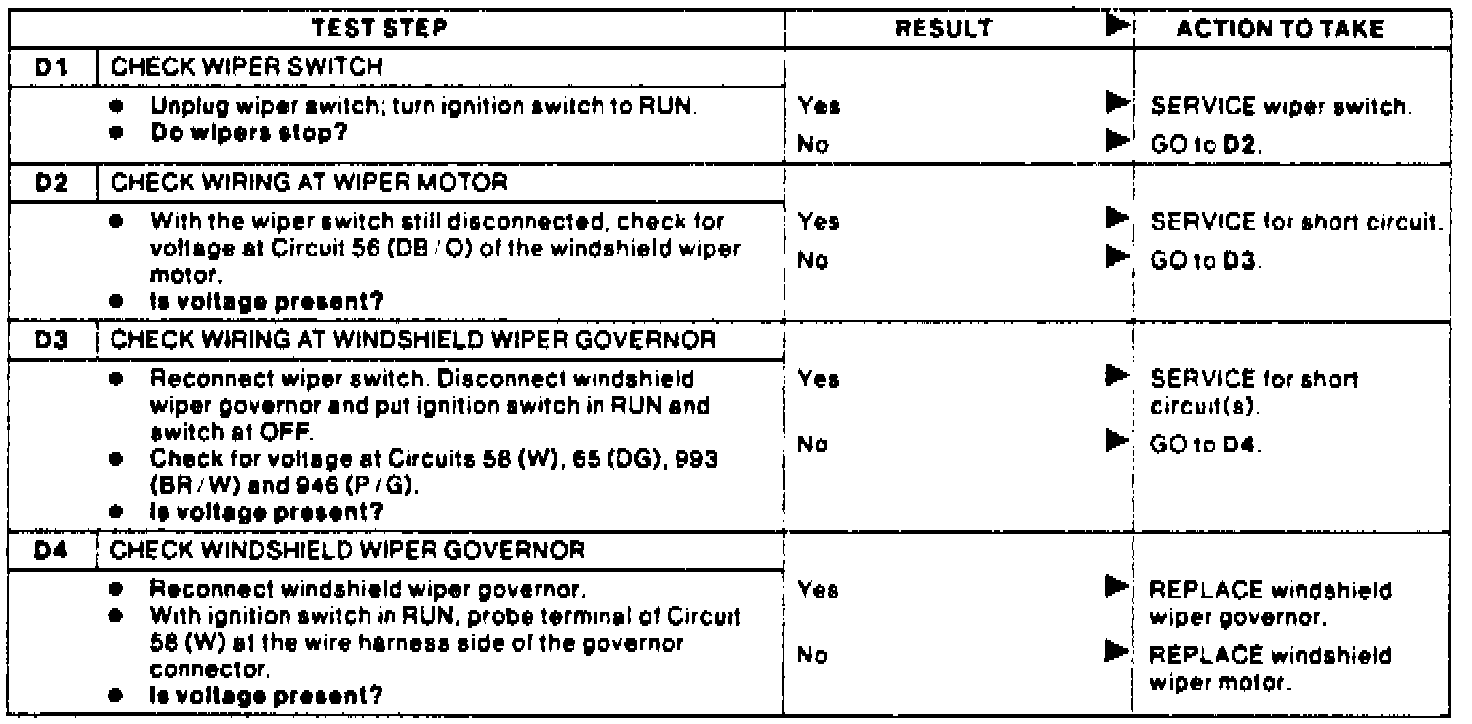

Fig. 37 Test D: Wipers Continue To Run When Wiper Switch Is Turned To OFF.:
Test D1 - D4.
