Manufacturer Code Charts: 12: 12.8

- If the previous pinpoint test steps have been completed, the most likely cause of the concern is wiring related.

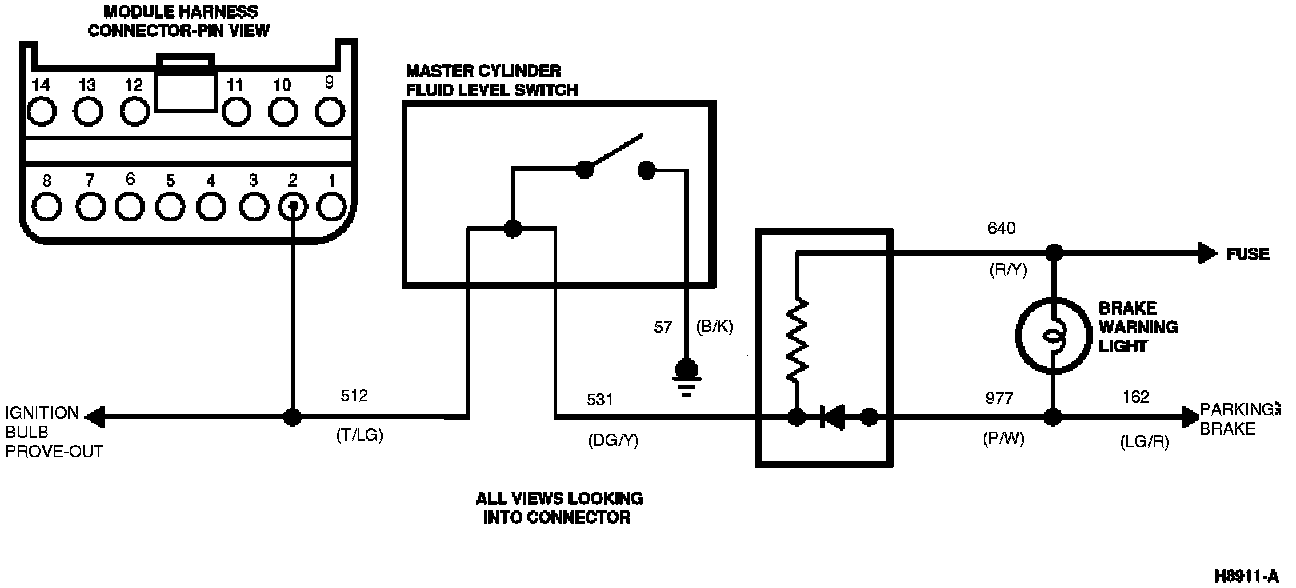

Connector Diagram:

- Refer to the Intermittent Wiring Diagnosis Procedure and perform for all affected circuits as shown on this pinpoint test mini-schematic. Intermittent Diagnosis Procedure

- Is resolution achieved?

YES -- Stop. Repair is complete. Go to Drive Test Code 16. Drive Test 1 Code 16

NO -- Go to 12.5. 12.5
