Manufacturer Code Charts: 6: 6.4

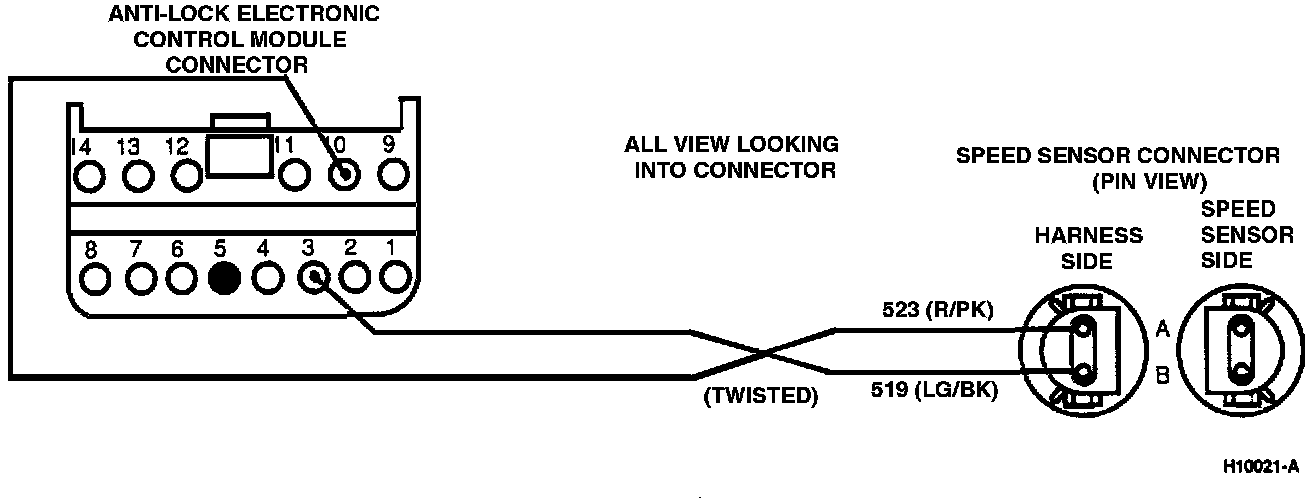

Connector Diagram:

- Set ohmmeter on the 20K ohm scale.

- Check resistance between Pins A and B of the sensor connector.

- Is resistance between 900 and 2500 ohms?

YES -- Go to 6.5. 6.5

NO -- Replace RABS speed sensor. Go to 6.6. 6.6
