A3 RABS Light Bulb

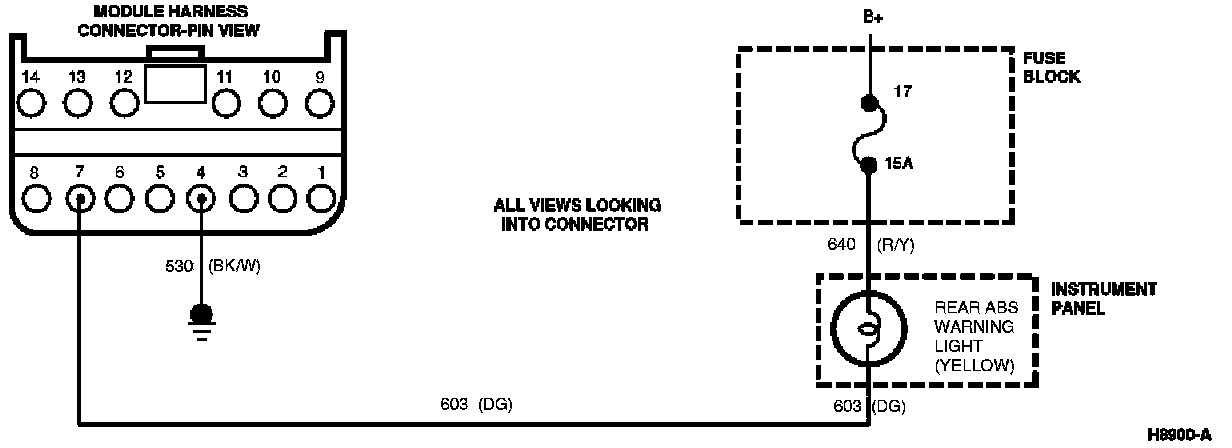

Pinpoint Test Diagram:

- Check REAR ABS light bulb.

- Is the bulb OK?

YES -- Repair open between RABS light fuse and Pin 7 of the module wiring harness connector. Repeat system pre-check.

NO -- Replace bulb. Repeat system pre-check. [1][2]A - Test system pre check
