L: Servo Assembly Test

Test L: Servo Assembly Test.:

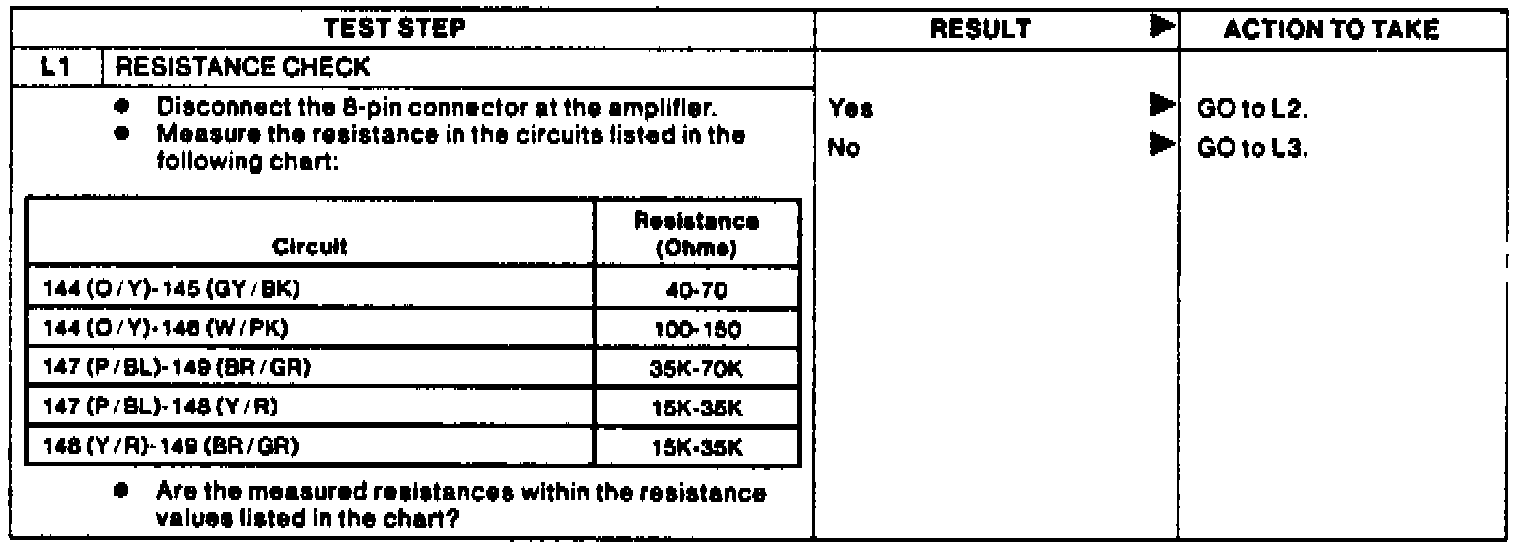

Test L1.

Test L: Servo Assembly Test.:

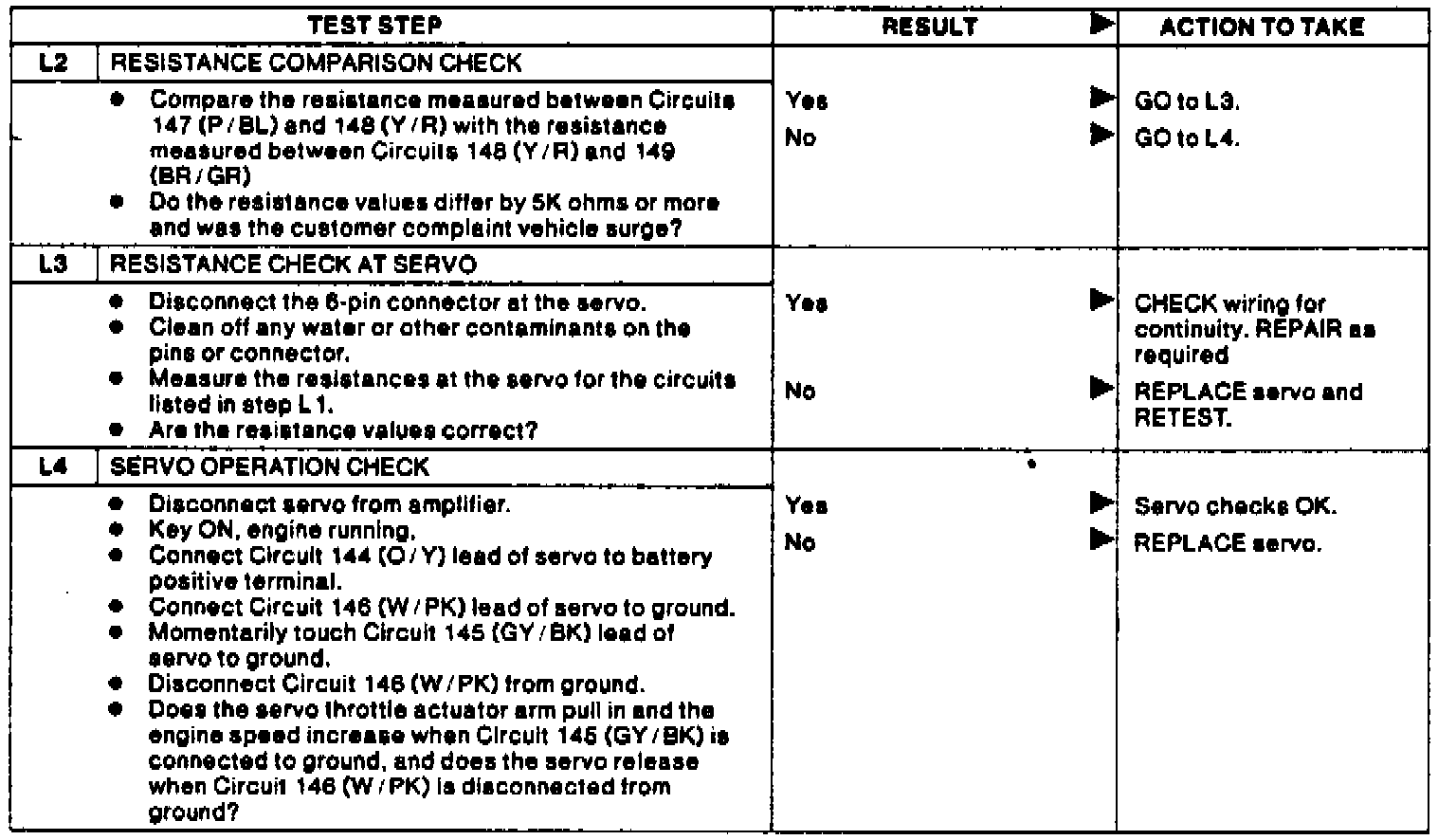

Test L2 - L4.
