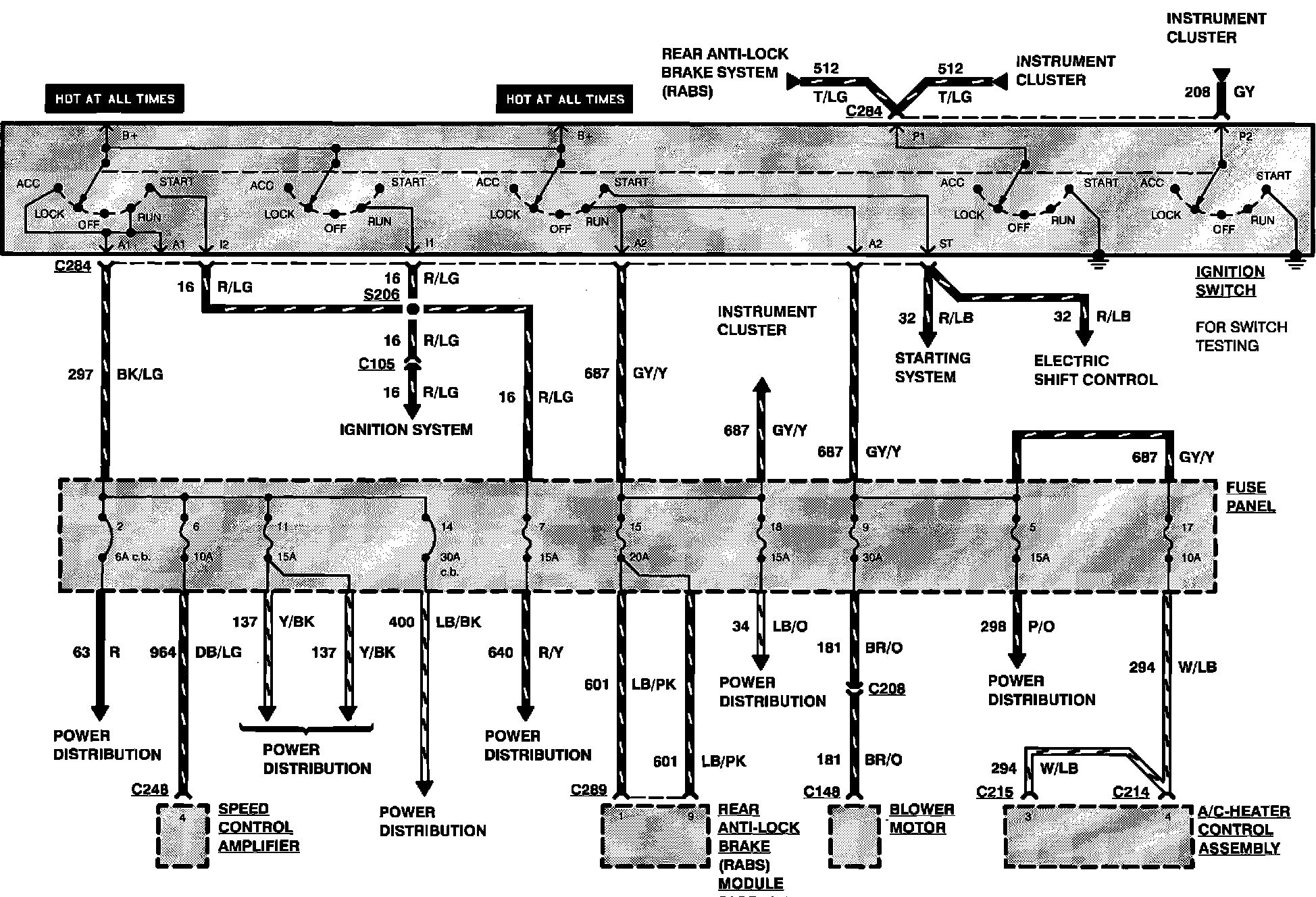

Fuse 6

Fuse 6 - protects the following circuit:
- Speed Control Amplifier

Power Source
Power is supplied through Fuse 1 of Engine Compartment Fuse/Relay Box and Ignition Switch.

Power Distribution:
