Throttle Cable/Linkage

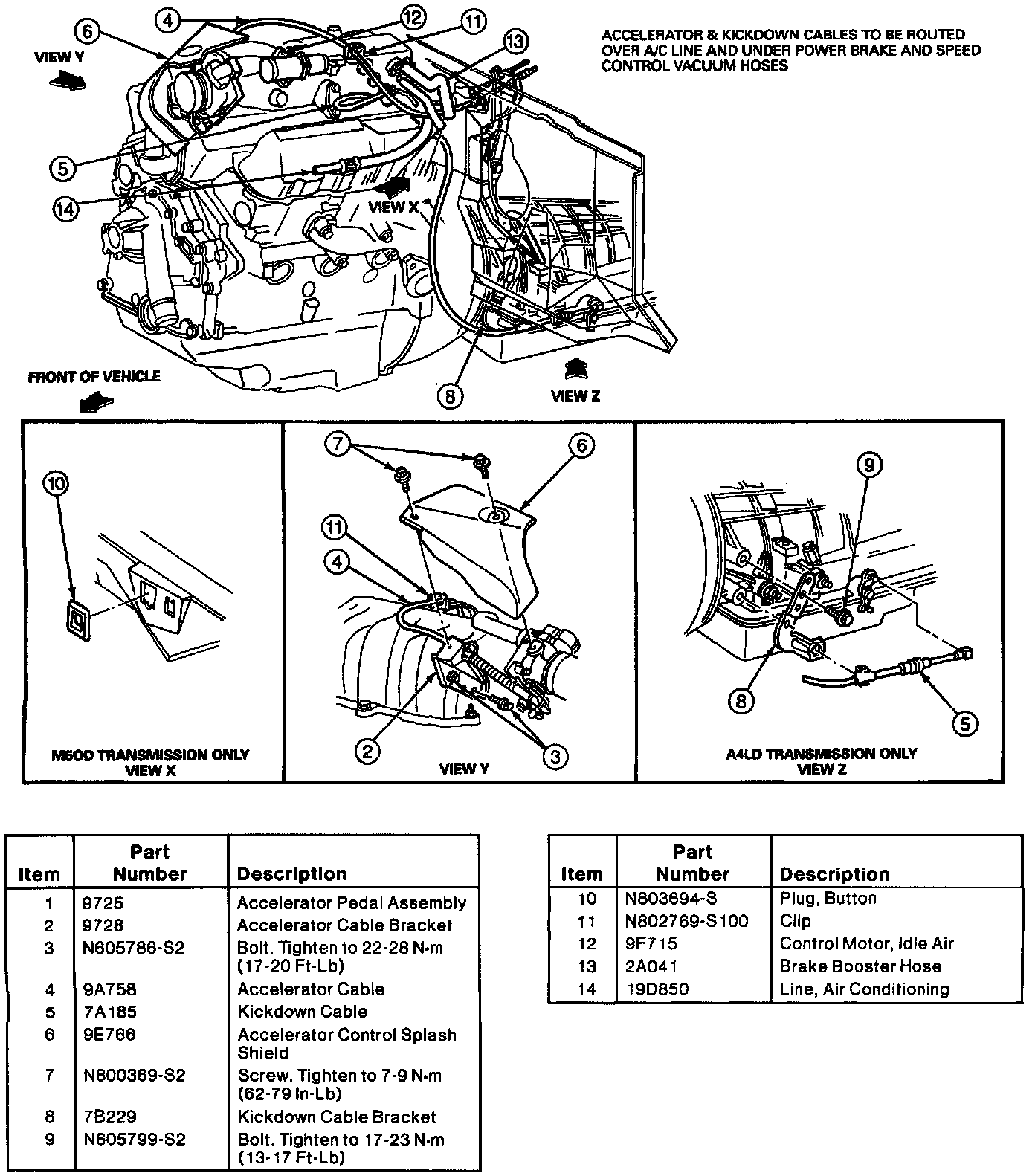

Accelerator Cable Assembly:

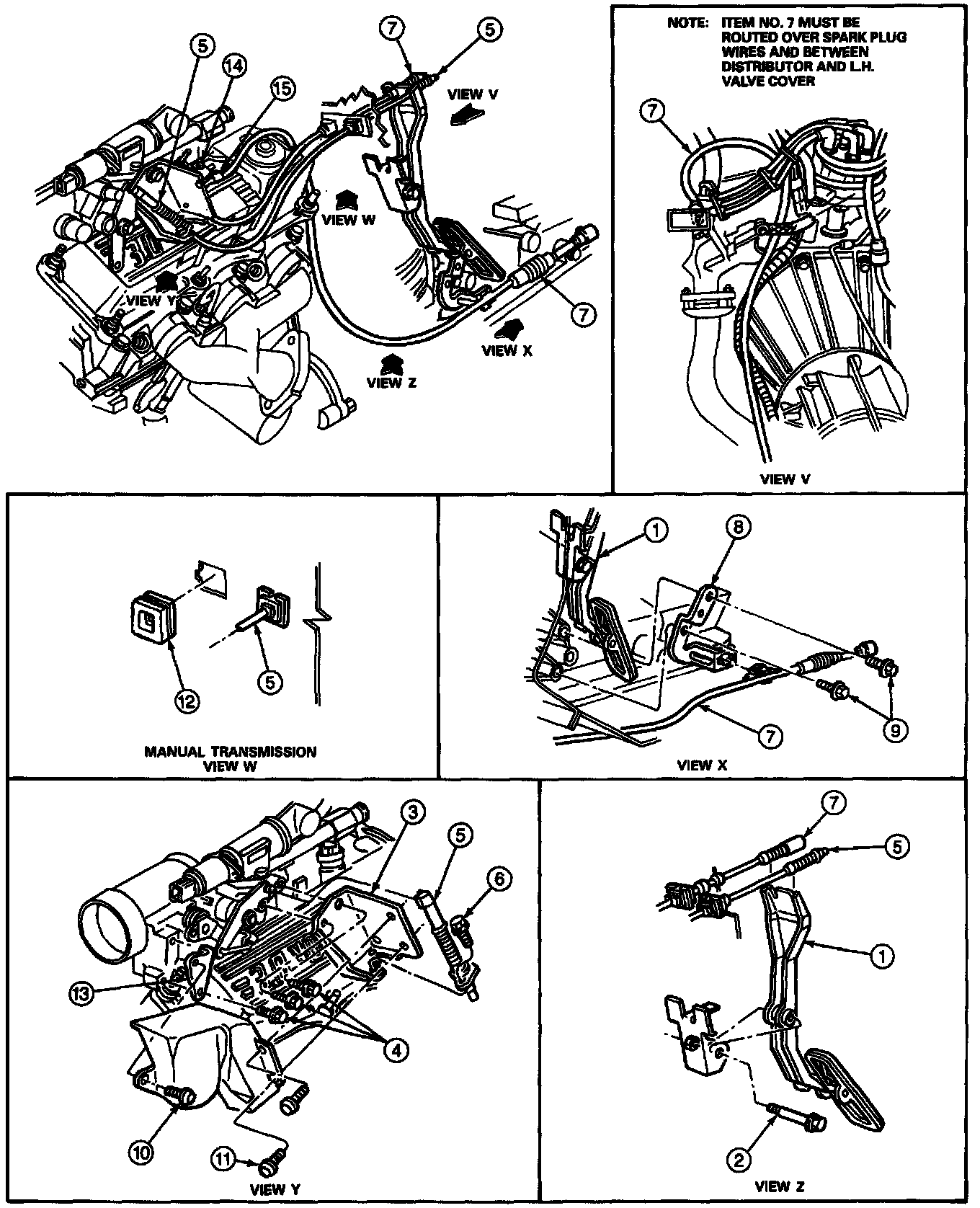

Accelerator Cable Assembly:

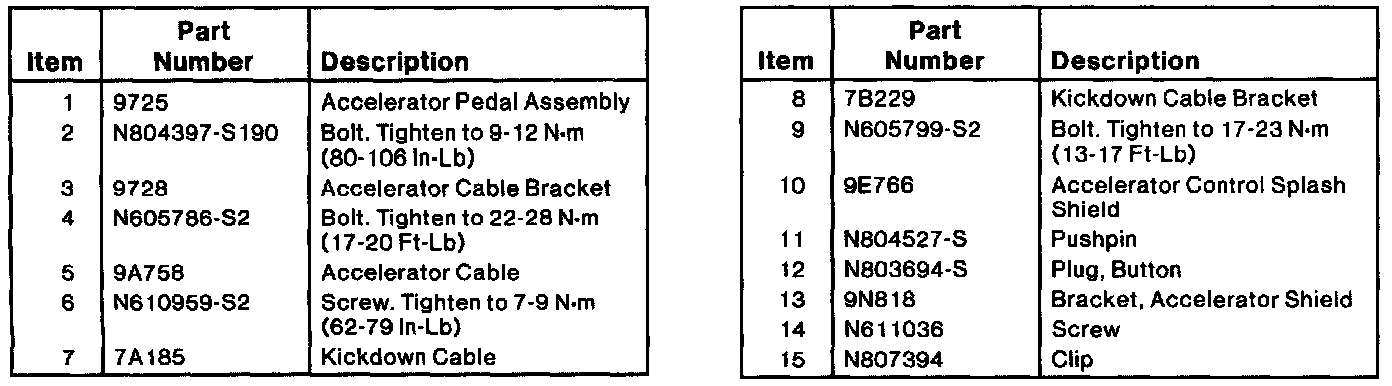

Accelerator Cable Assembly:
