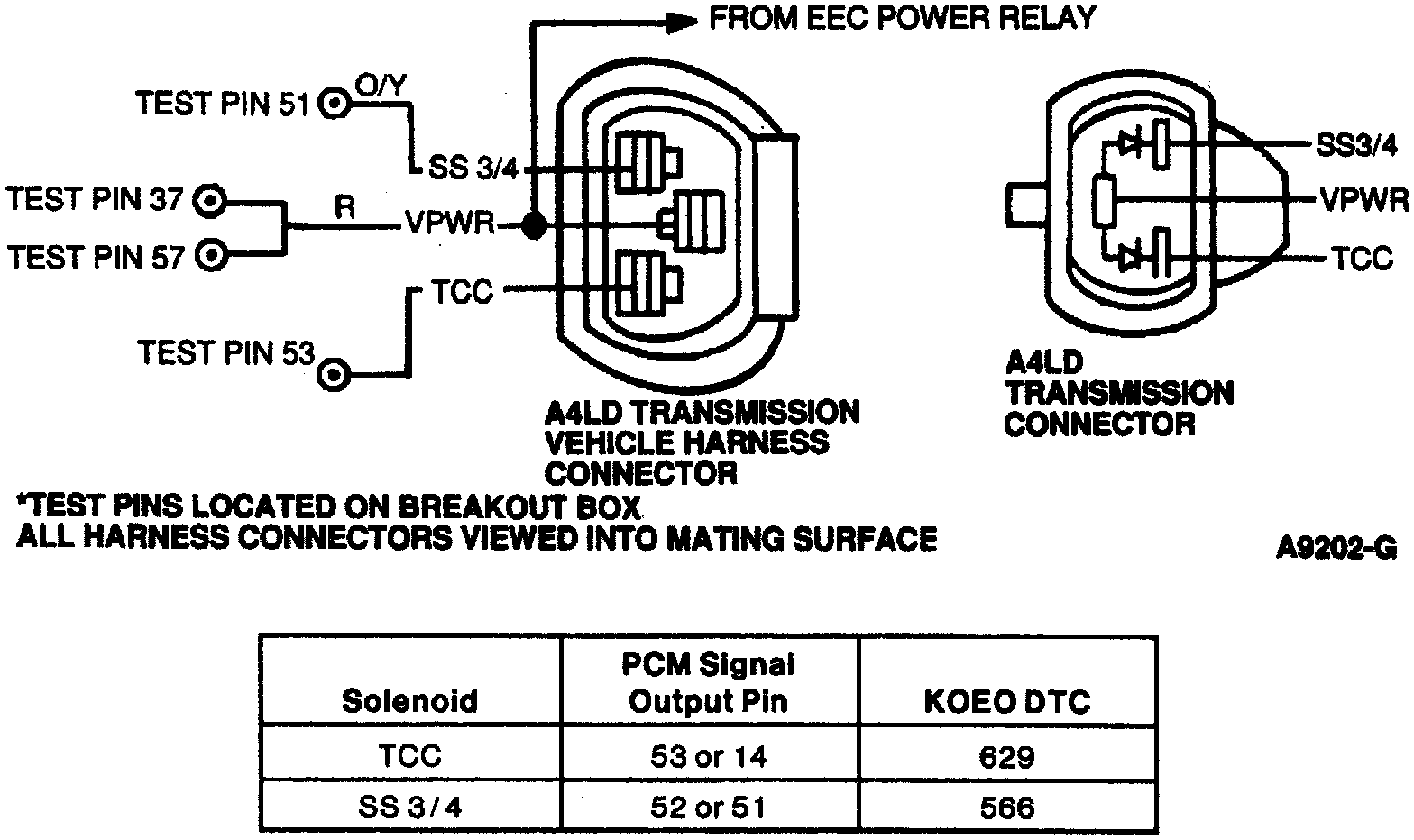

TC - Testing Schematic
TC - Testing Schematic
Transmission Solenoids Connector View:
CIRCUIT / PIN / WIRE COLOR
SS 3/4 / 51 / orange/yellow
TCC / 53 / pink/yellow
