Inertia Fuel Shutoff Switch: Locations

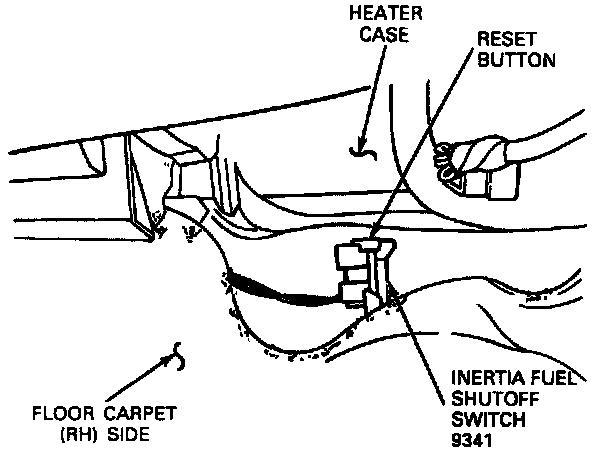

INERTIA FUEL SHUTOFF SWITCH LOCATION
Inertia Fuel Shutoff Switch Location:
Located on the toe-board to the right of the transmission hump.
