Home
>>
Ford
>>
1994
>>
Ranger 2WD V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

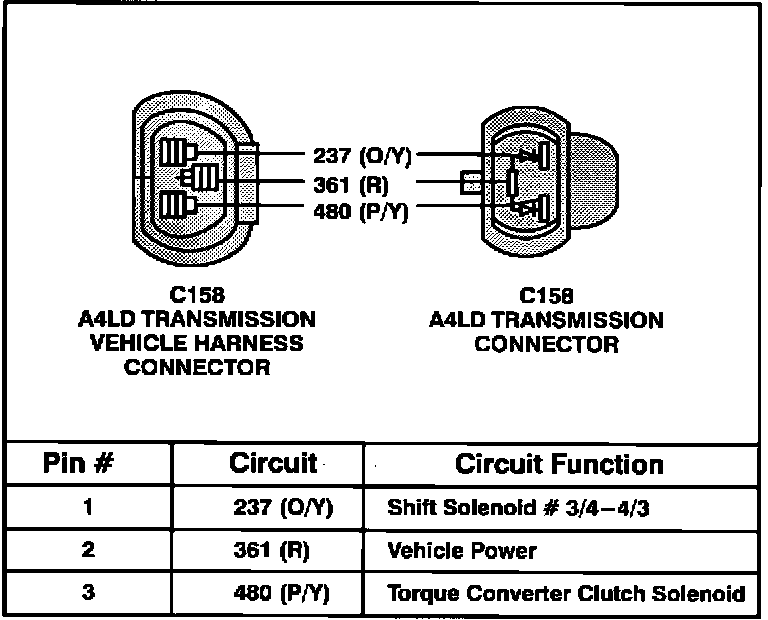

Transmission Vehicle Harness Connector:
