Starter Motor: Description and Operation

MOTORCRAFT PERMANENT MAGNET STARTERS

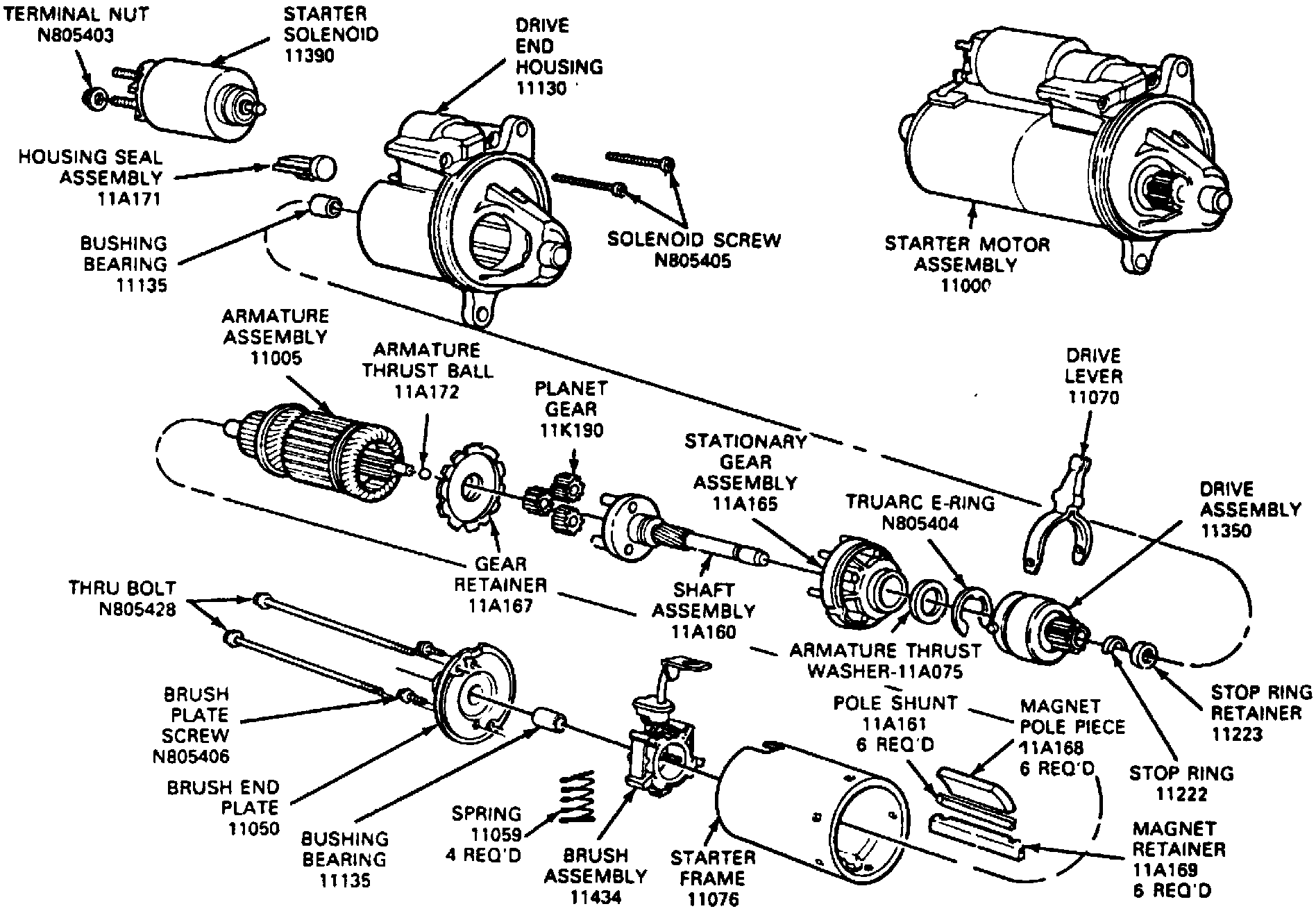

Exploded View Of Permanent Magnet Starter Motor:

The starting system includes the permanent magnet gear reduction starter motor with solenoid actuated drive, the battery, a remote control starter switch (Part of the ignition switch), the park/neutral position switch (automatic transmission), clutch pedal position switch (manual transmission), the starter relay, and heavy circuit wiring.
