Troubleshooting Charts

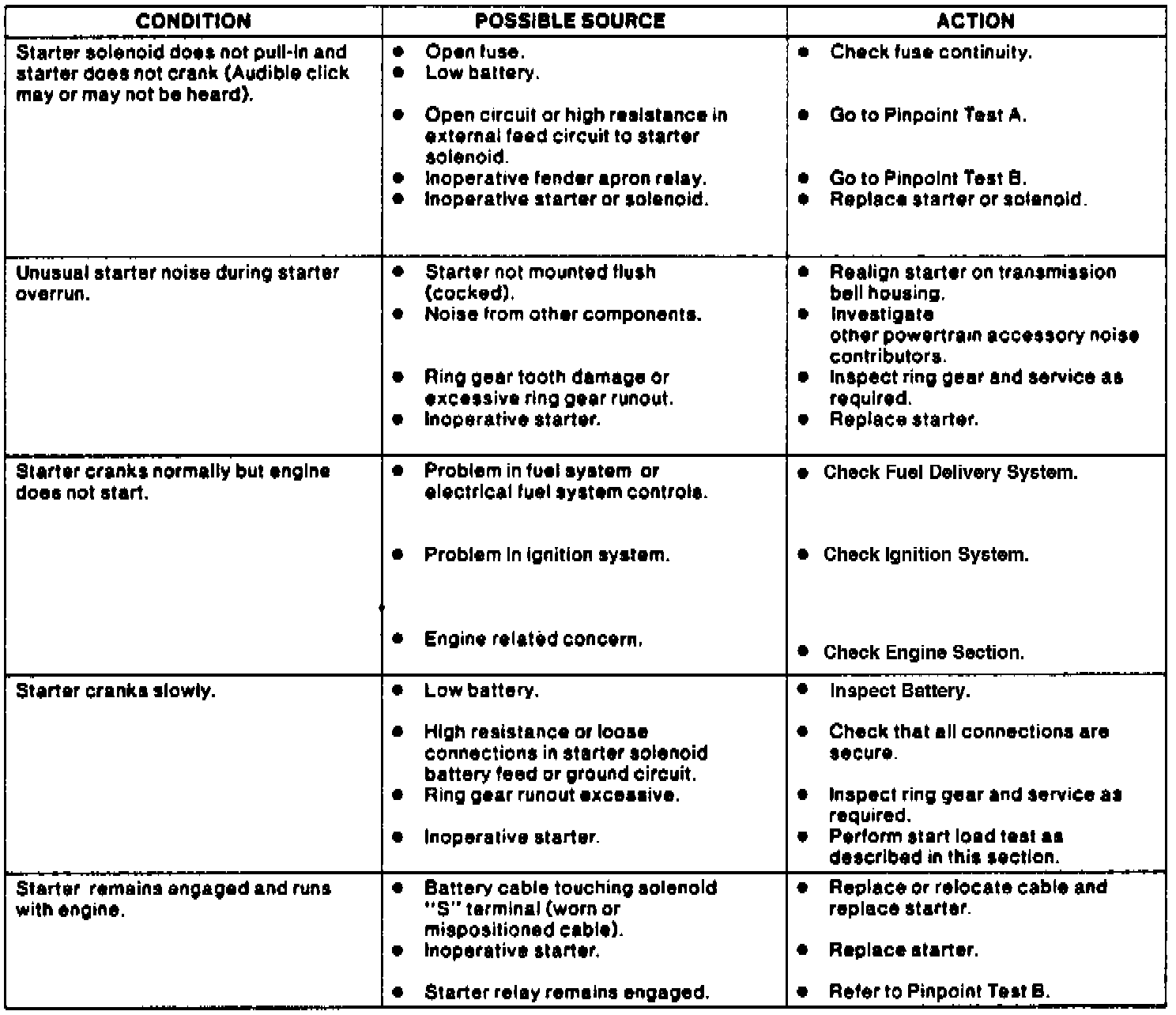

Troubleshooting Chart:
Refer to this chart for
starter motor
troubleshooting.
