Suspension: Description and Operation

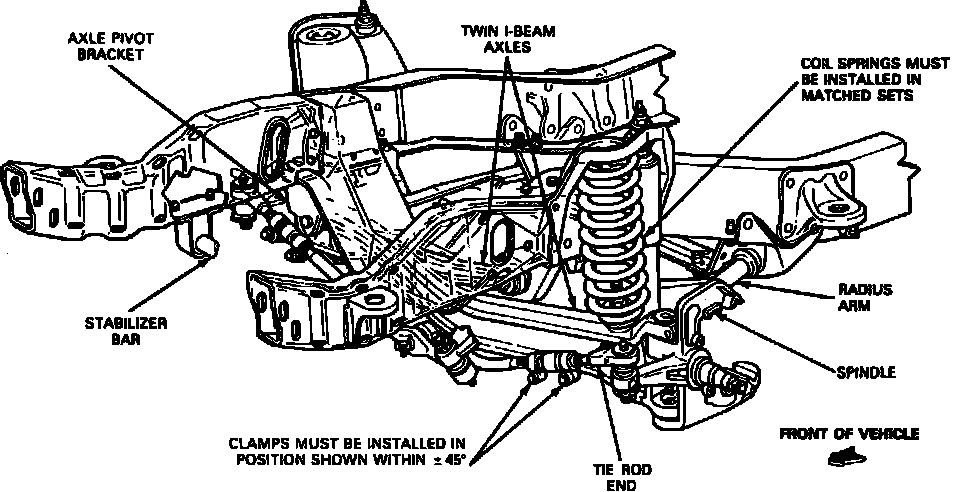

Fig. 1 Front Suspension 4x2 Models. Bronco II And Explorer:

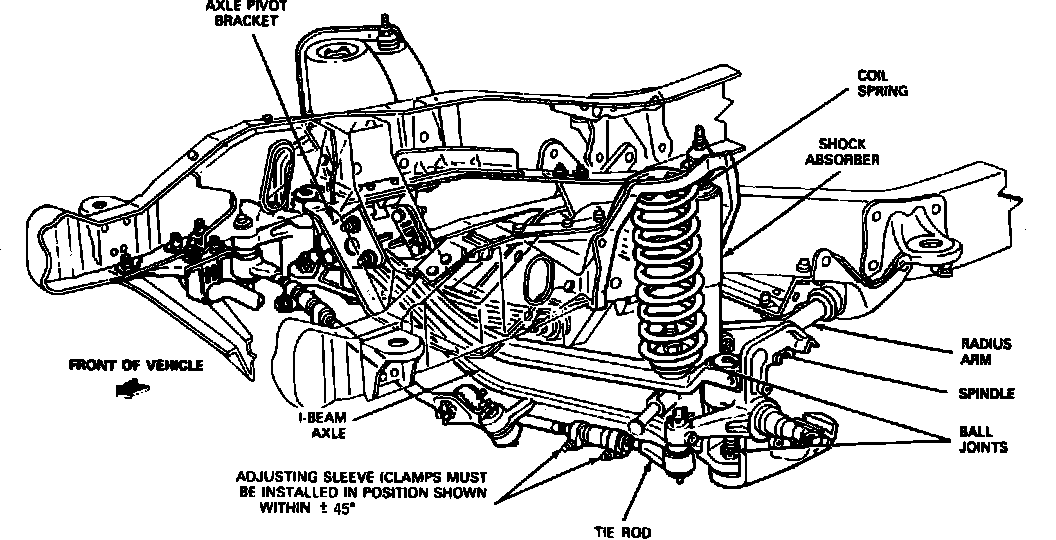

Fig. 2 Front Suspension 4x2 Models. Ranger:

The twin I-beam suspension consists of coil springs, I-beam axle arms, radius arms, upper and lower ball joints, spindles, tie rods, shock absorbers and an optional stabilizer bar, Fig. 1 and 2.
