8 - Low/Slow Idle; Stalls/Quits During Deceleration
8 - Low/Slow Idle; Stalls/Quits During Deceleration

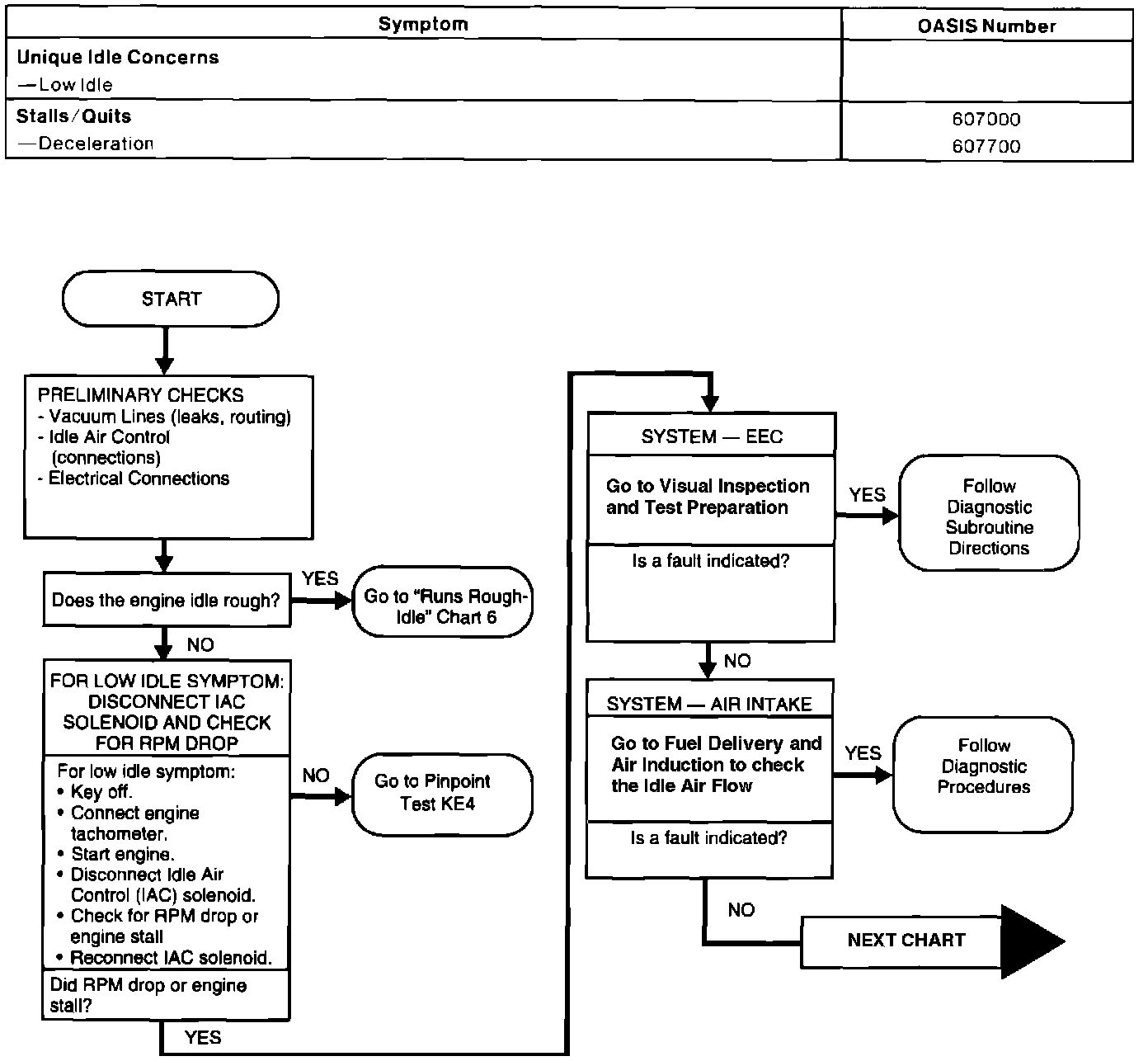

Chart 8 (Part 1 of 2):
Chart 8 (Part 2 of 2):
