Fuse 5

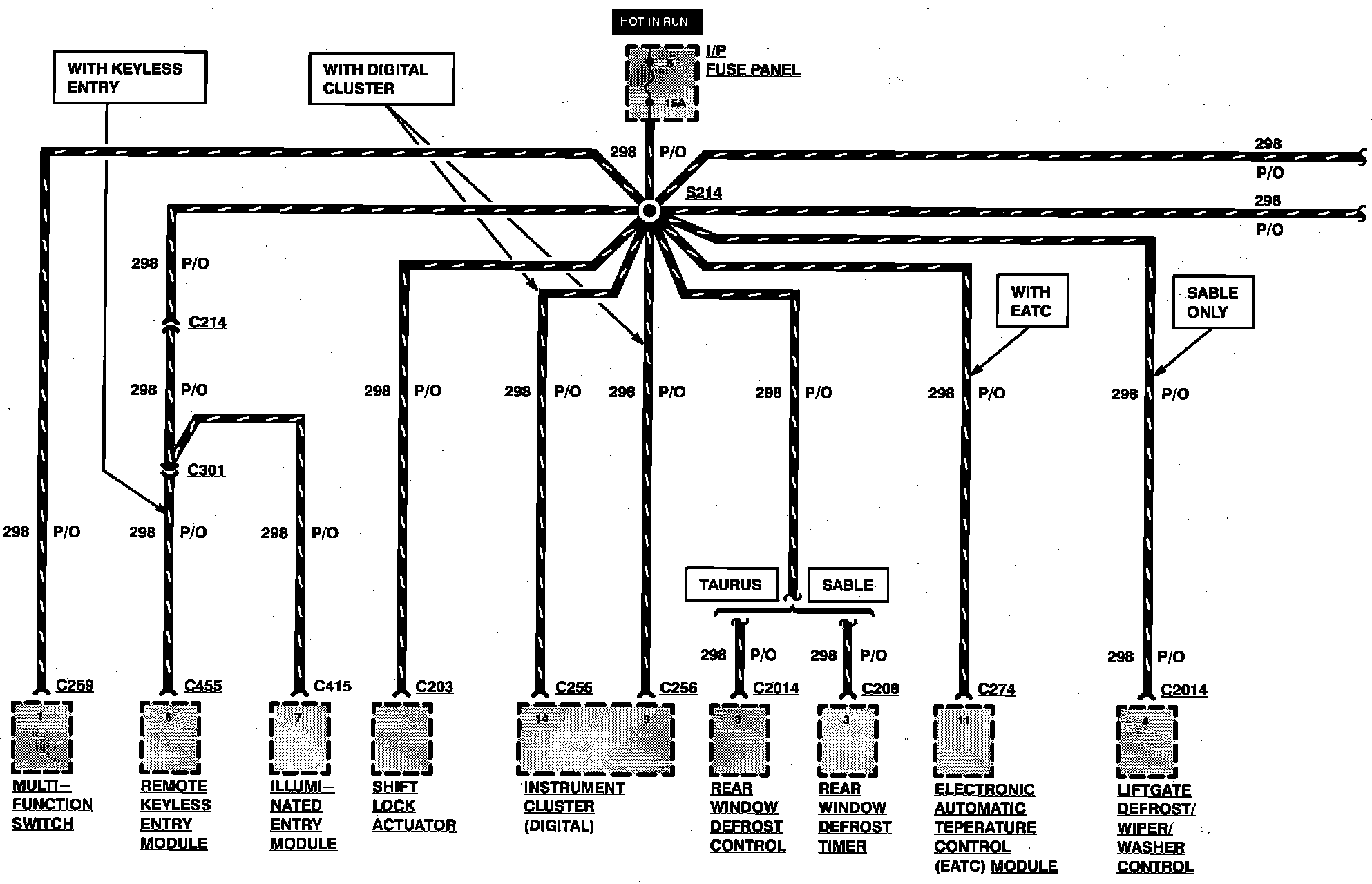

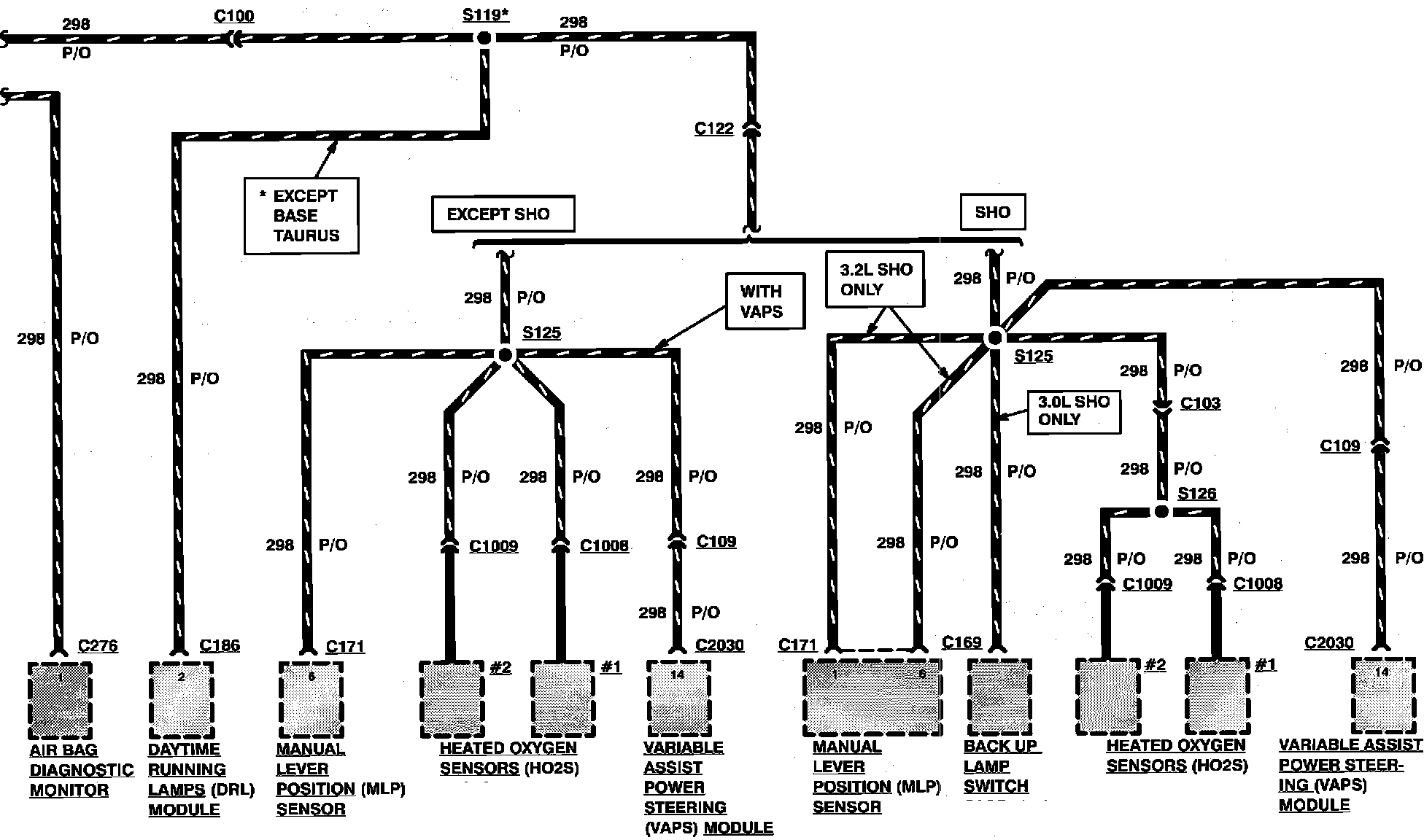

Fuse 5 - protects the following circuits:
-
Air Bags
-
Backup Lamps
-
Daytime Running Lamps
-
Digital Instrument Cluster
-
Electronic Automatic Temperature Control Module
-
Heated Oxygen Sensor
-
Illuminated Entry
-
Keyless Entry
-
Manual Lever Position Sensor
-
Rear Window Defrost
-
Shift Lock Actuator
-
Turn Signals
-
Variable Assist Power Steering Module

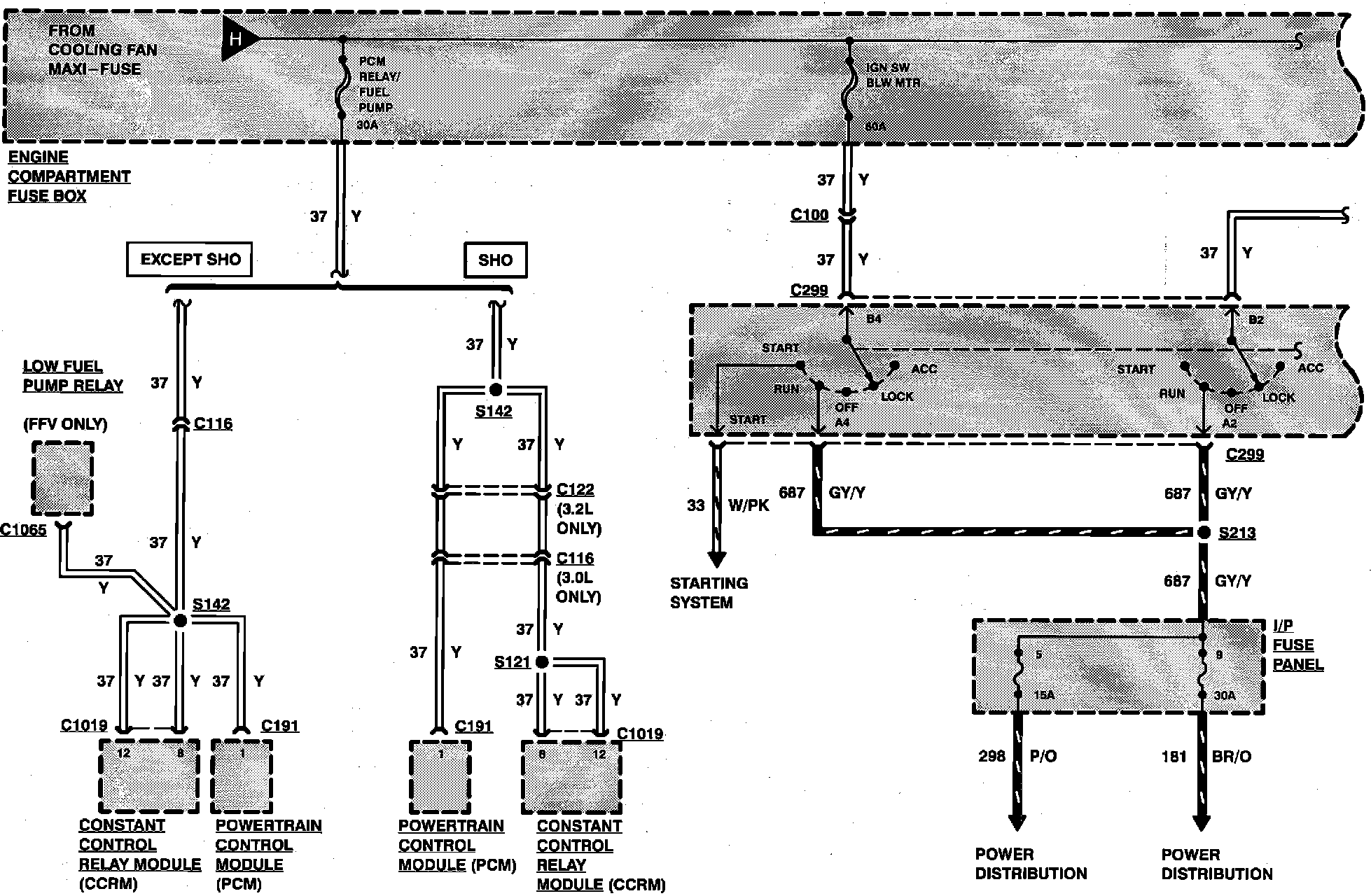

Power Distribution:
Power Distribution:
Power Distribution:
