AC - EEC-IV No Start (Electronic Ignition-High Data Rate)
>>

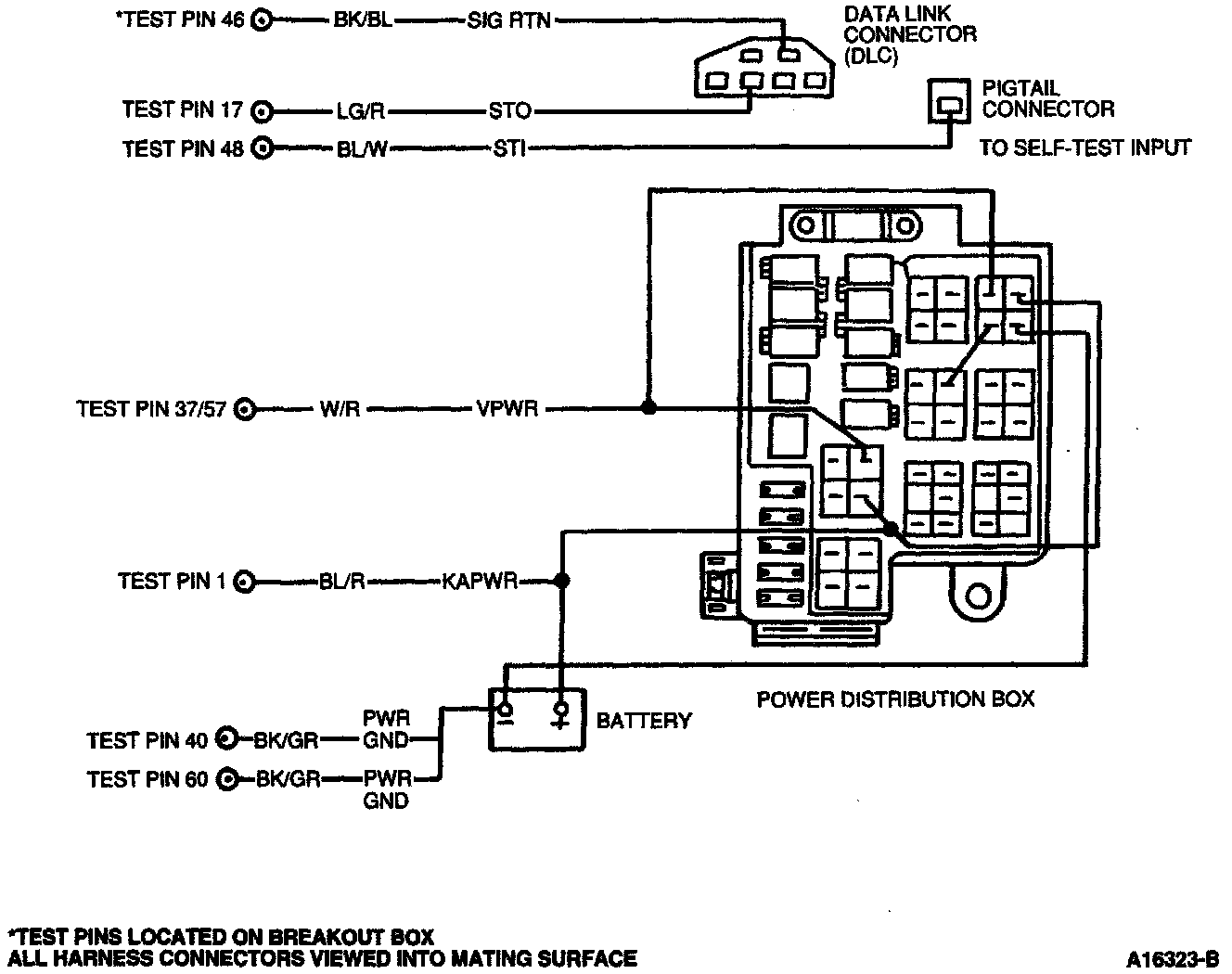

AC - Testing Schematic
AC - Testing Schematic
CIRCUIT / PIN / WIRE COLOR
IDM
/
pin 14
/
orange/white
