Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

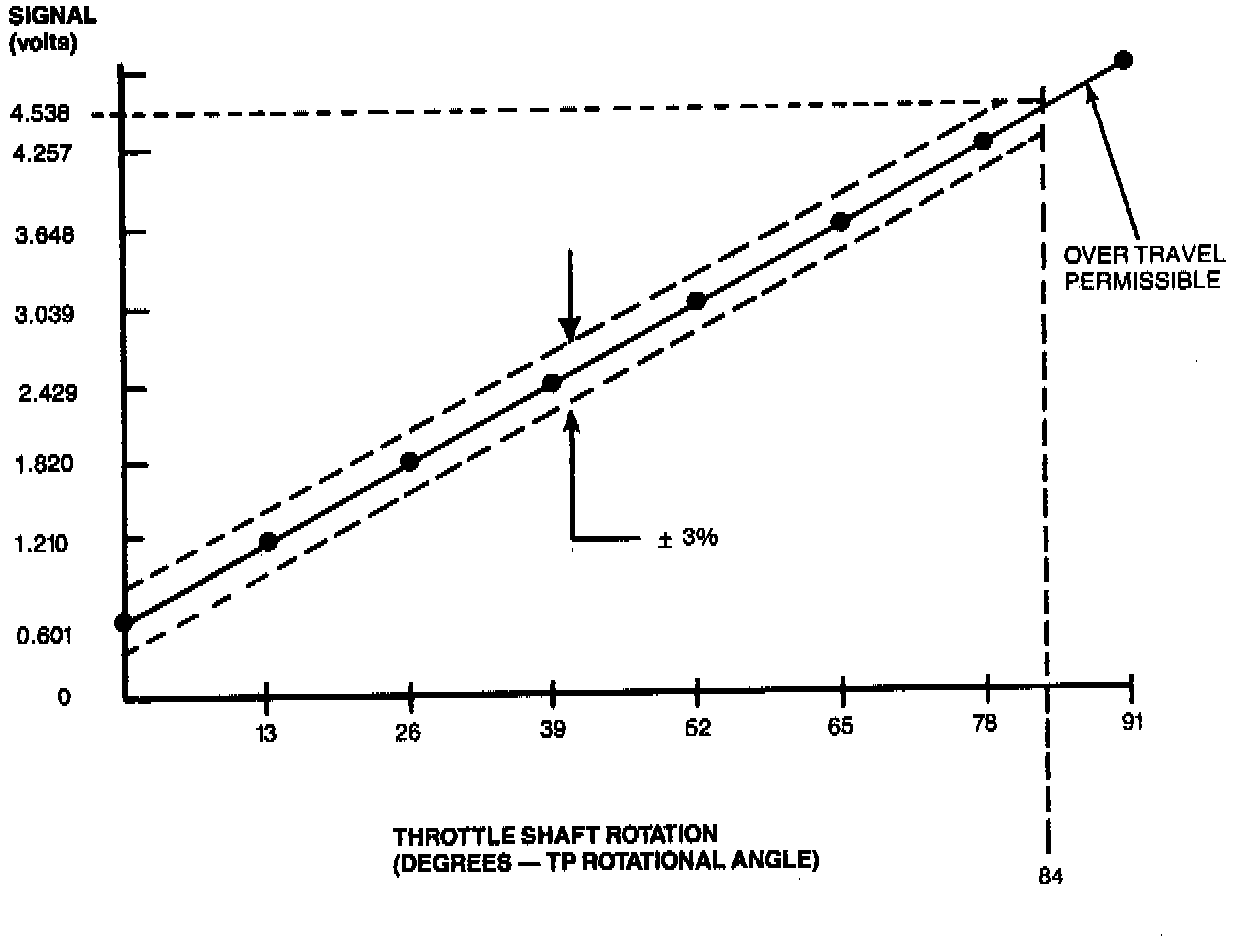

Throttle Angle Measurement:
