System Diagram

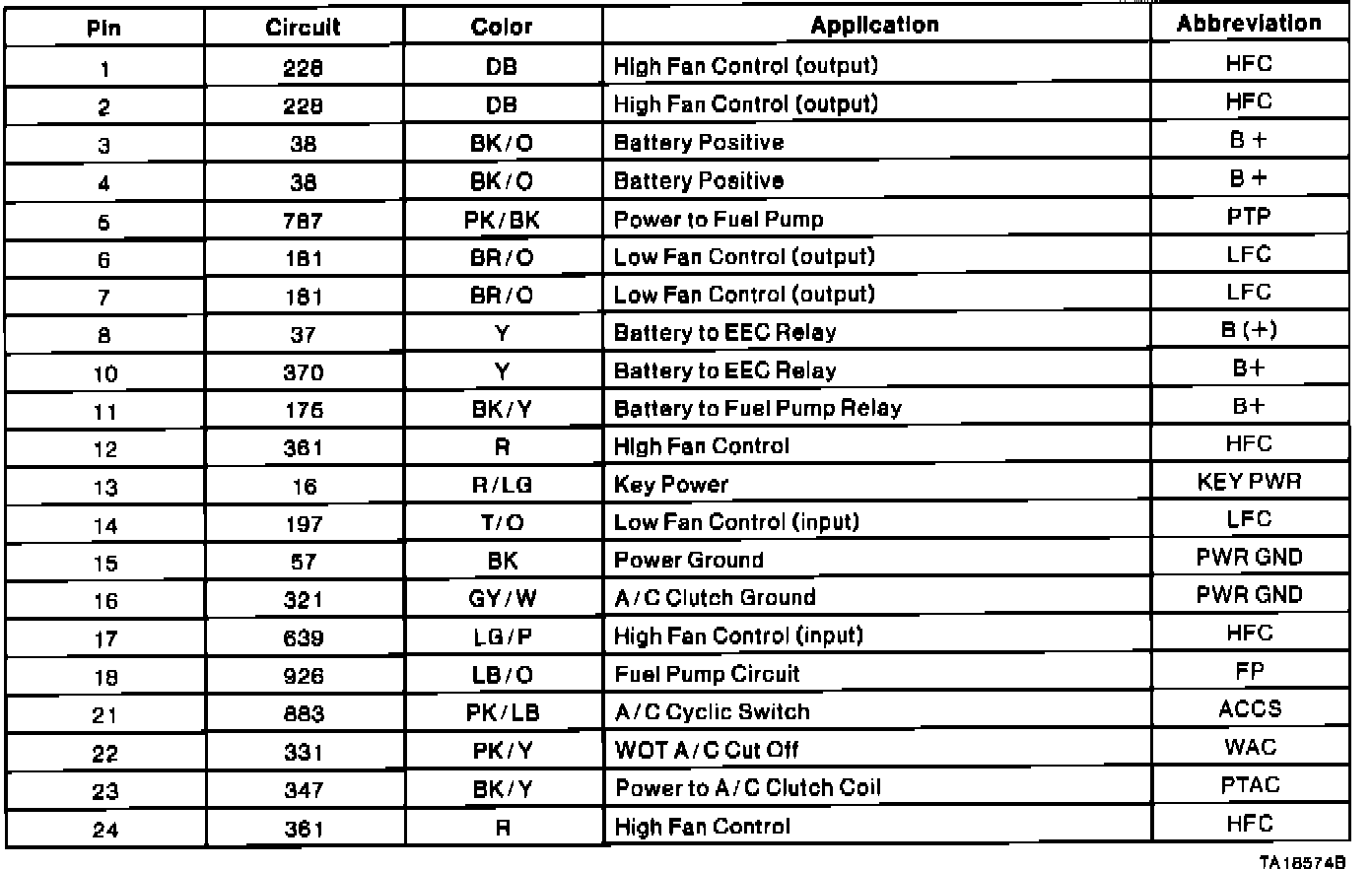

Constant Control Relay Module (CCRM) Pin Usage:

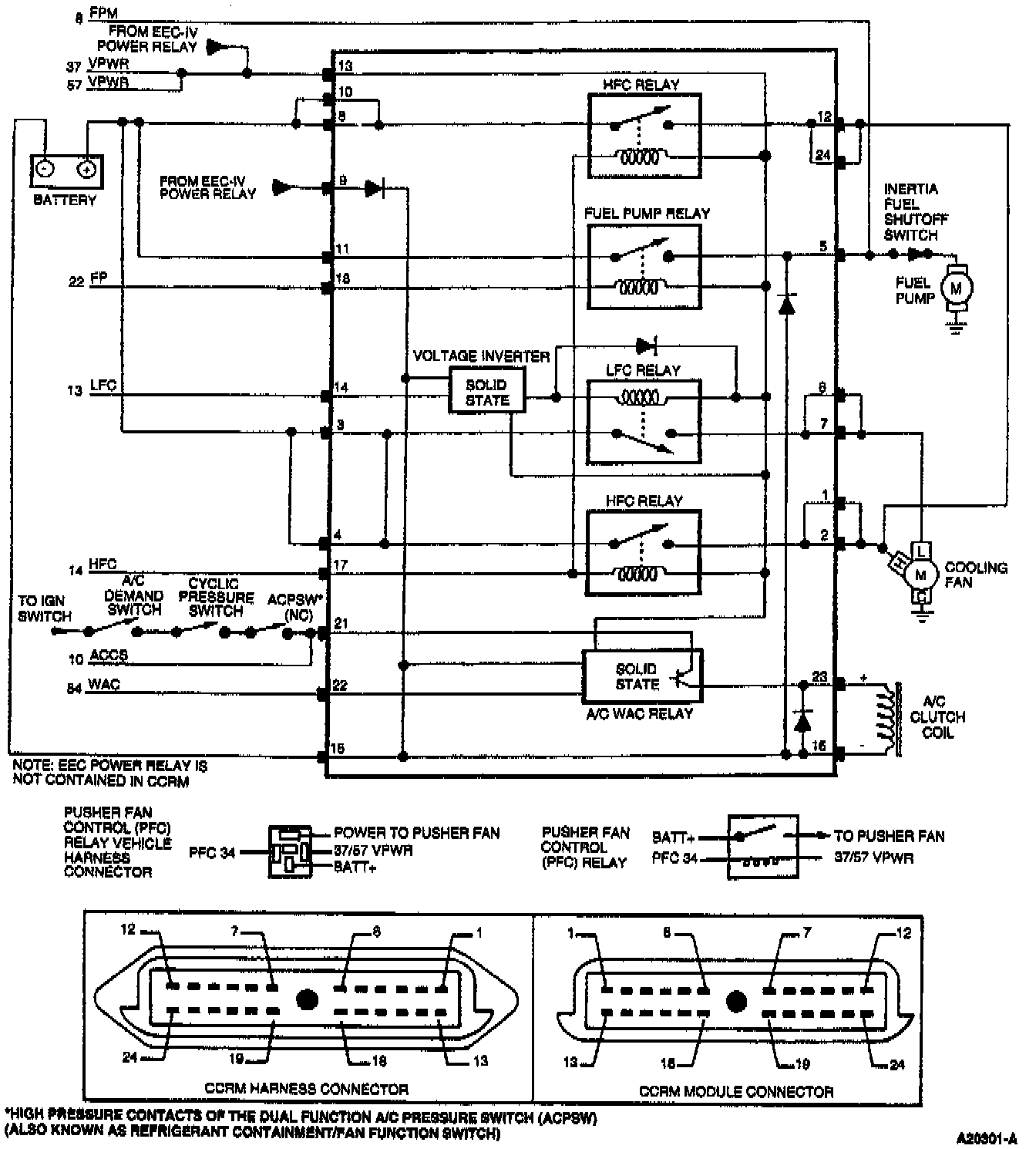

Constant Control Relay Module (CCRM):
