Home
>>
Ford
>>
1994
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Manufacturer Code Charts
>>
45 : LH Primary Crash Sensor Not Mounted Properly
>>

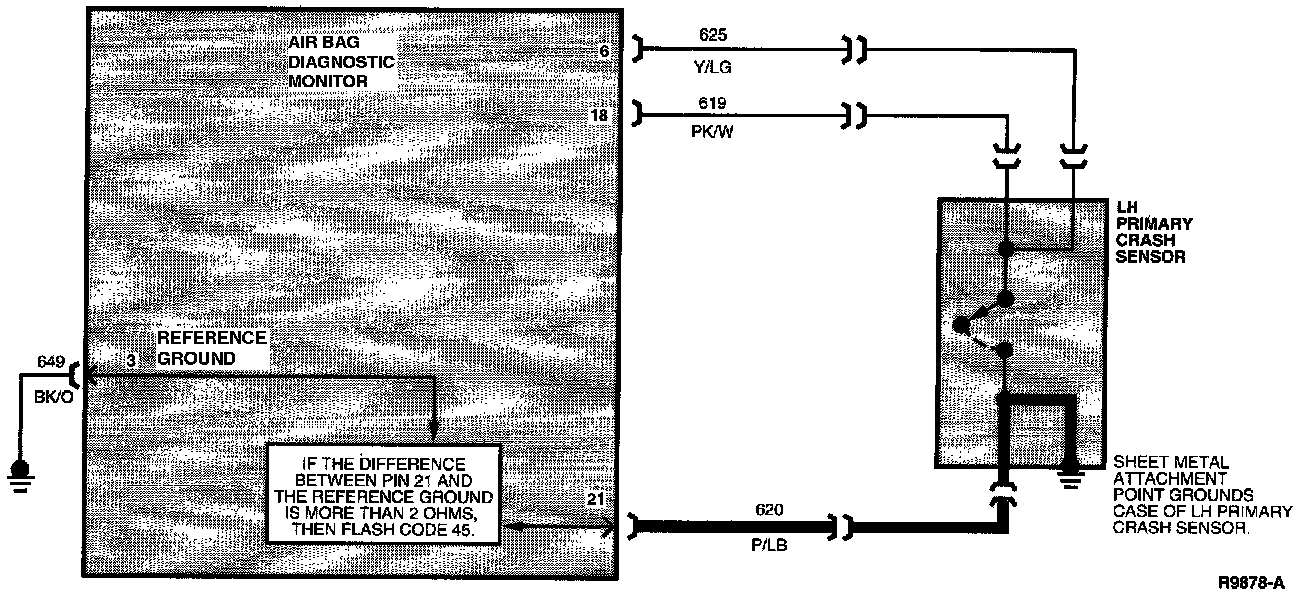

Electrical Schematic
Electrical Schematic
