Without Autolamps

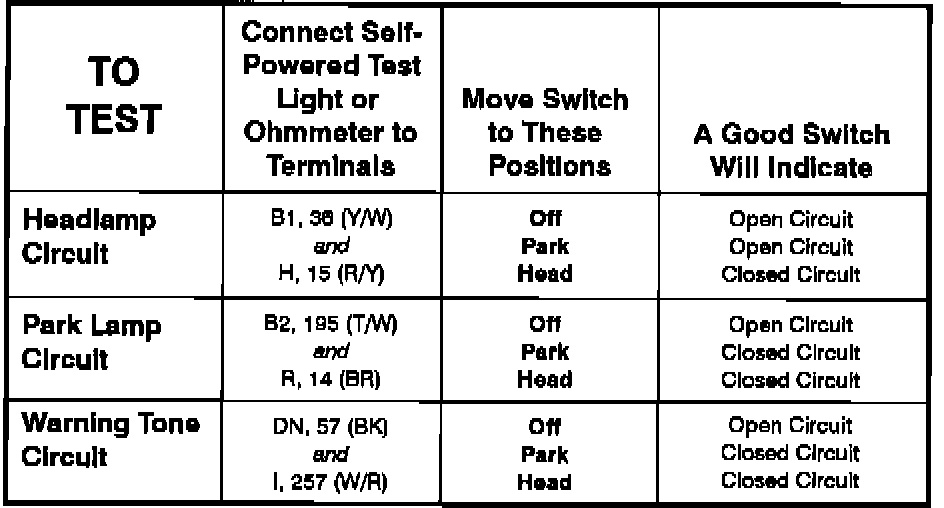

Component Testing Procedure:

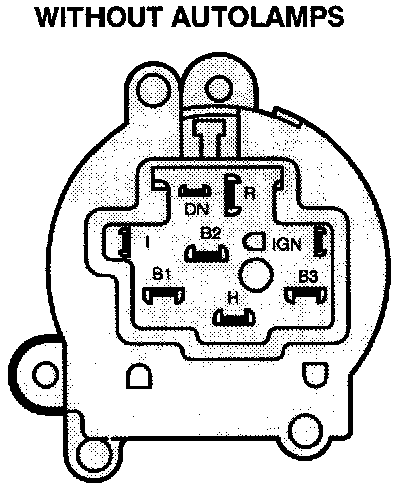

Main Light Switch - Terminal Locations (Without Autolamps):

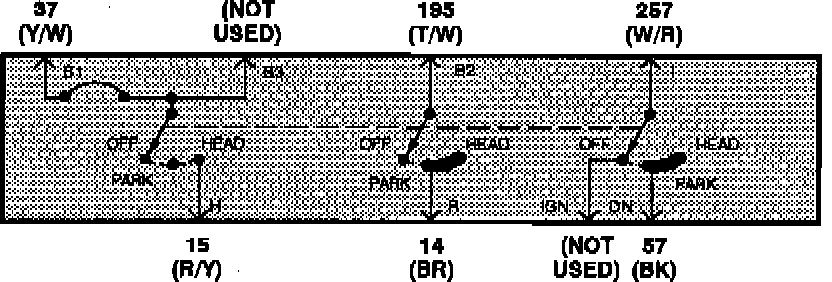

Schematic:
