Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

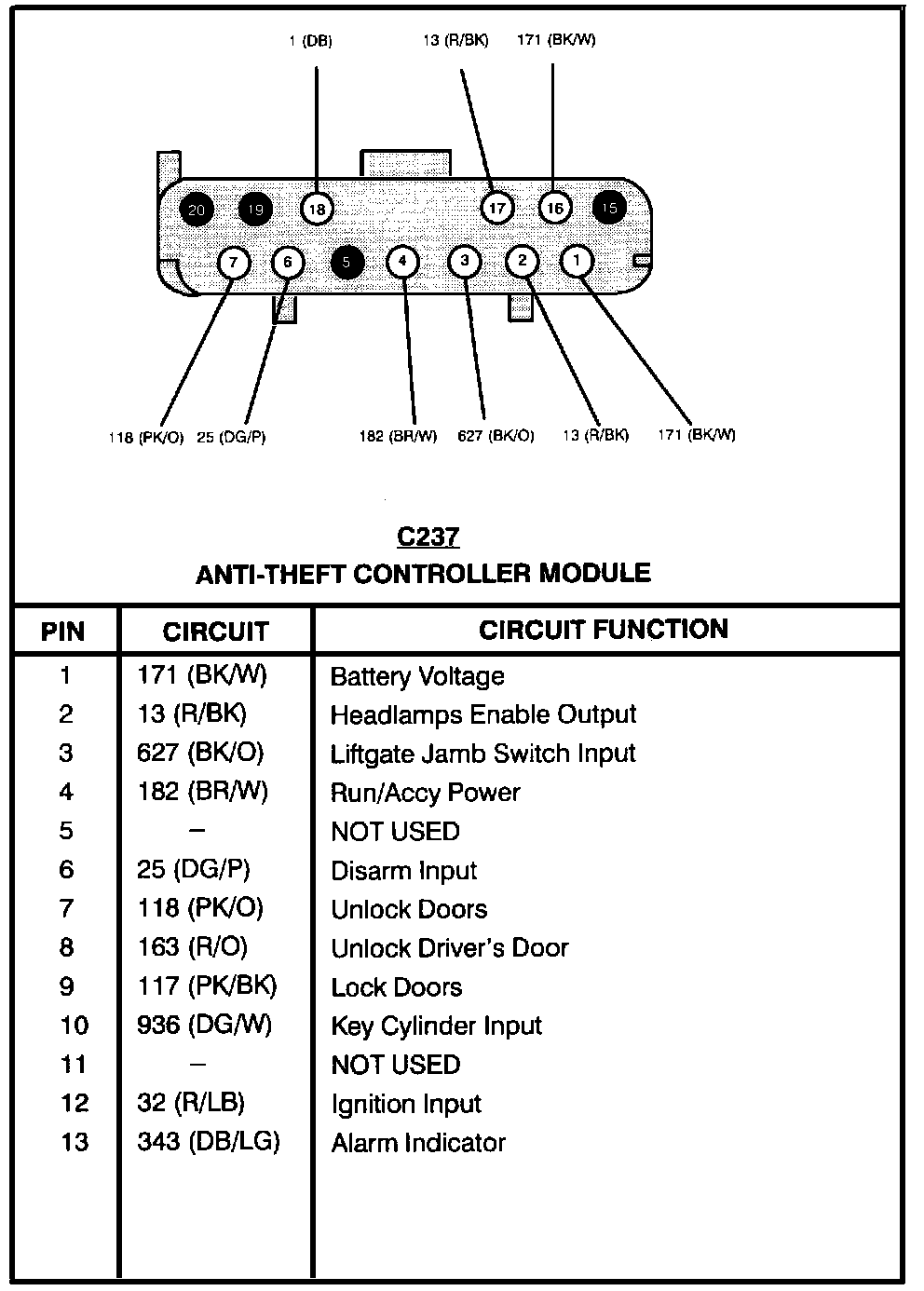

Anti-Theft Controller Module (C237):

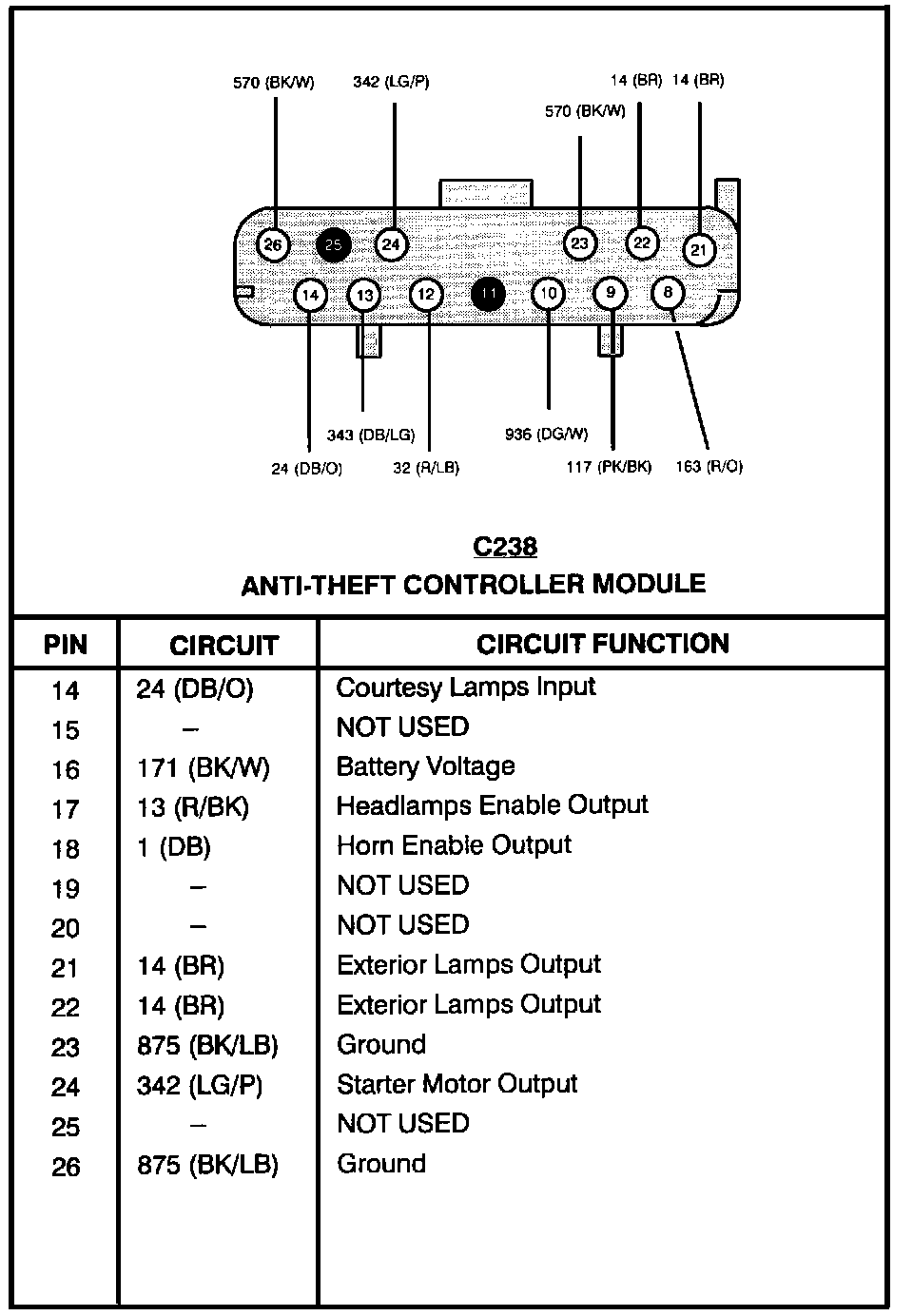

Anti-Theft Controller Module (C238):
