Bronco Full Size V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With E4OD or 4R70W Transmission
With E4OD or 4R70W Transmission

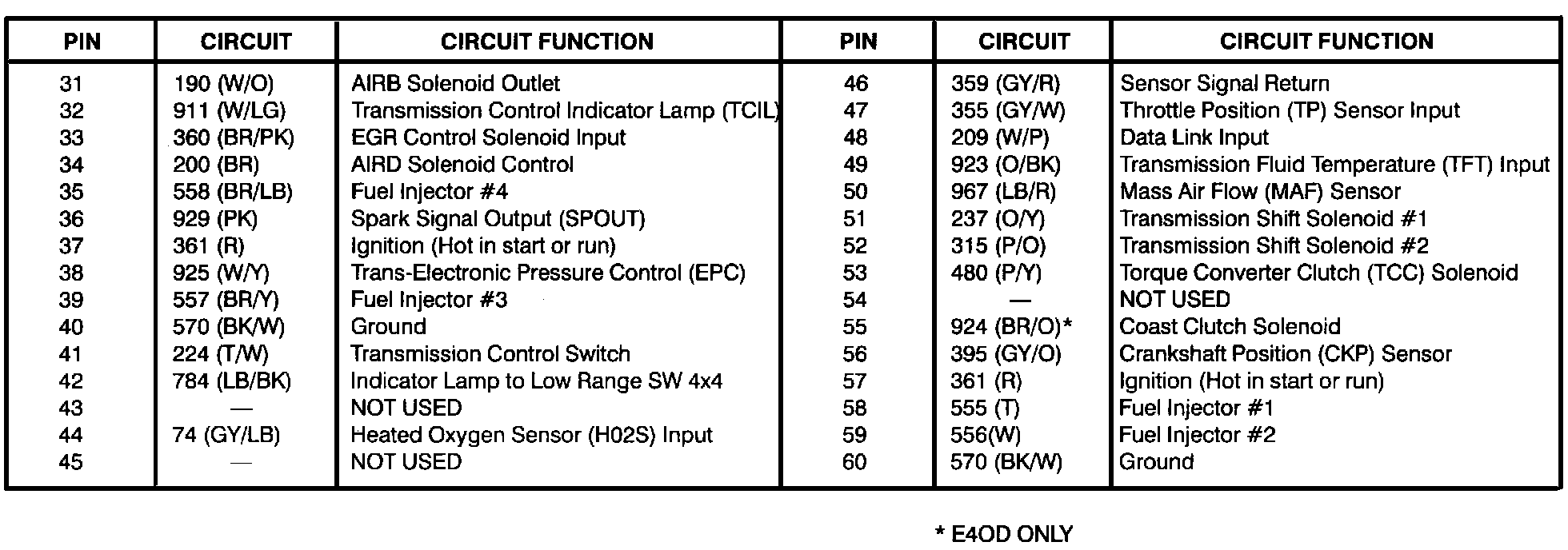

Powertrain Control Module (With E4OD Or 4R70W Transmission) (Part 1 Of 2):

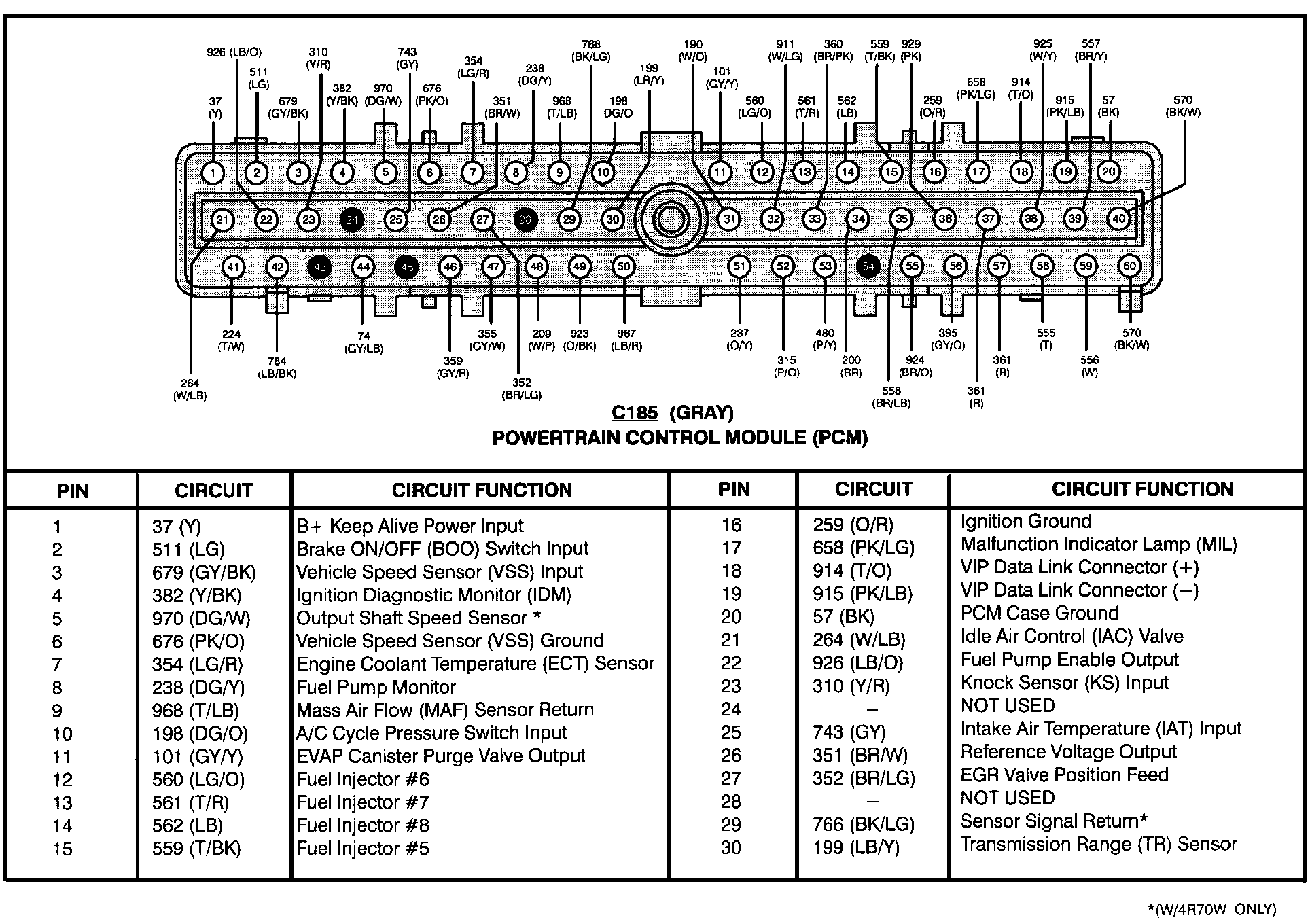

Powertrain Control Module (With E4OD Or 4R70W Transmission) (Part 2 Of 2):
