Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
Bronco Full Size V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Without E4OD or 4R70W Transmission
Without E4OD or 4R70W Transmission

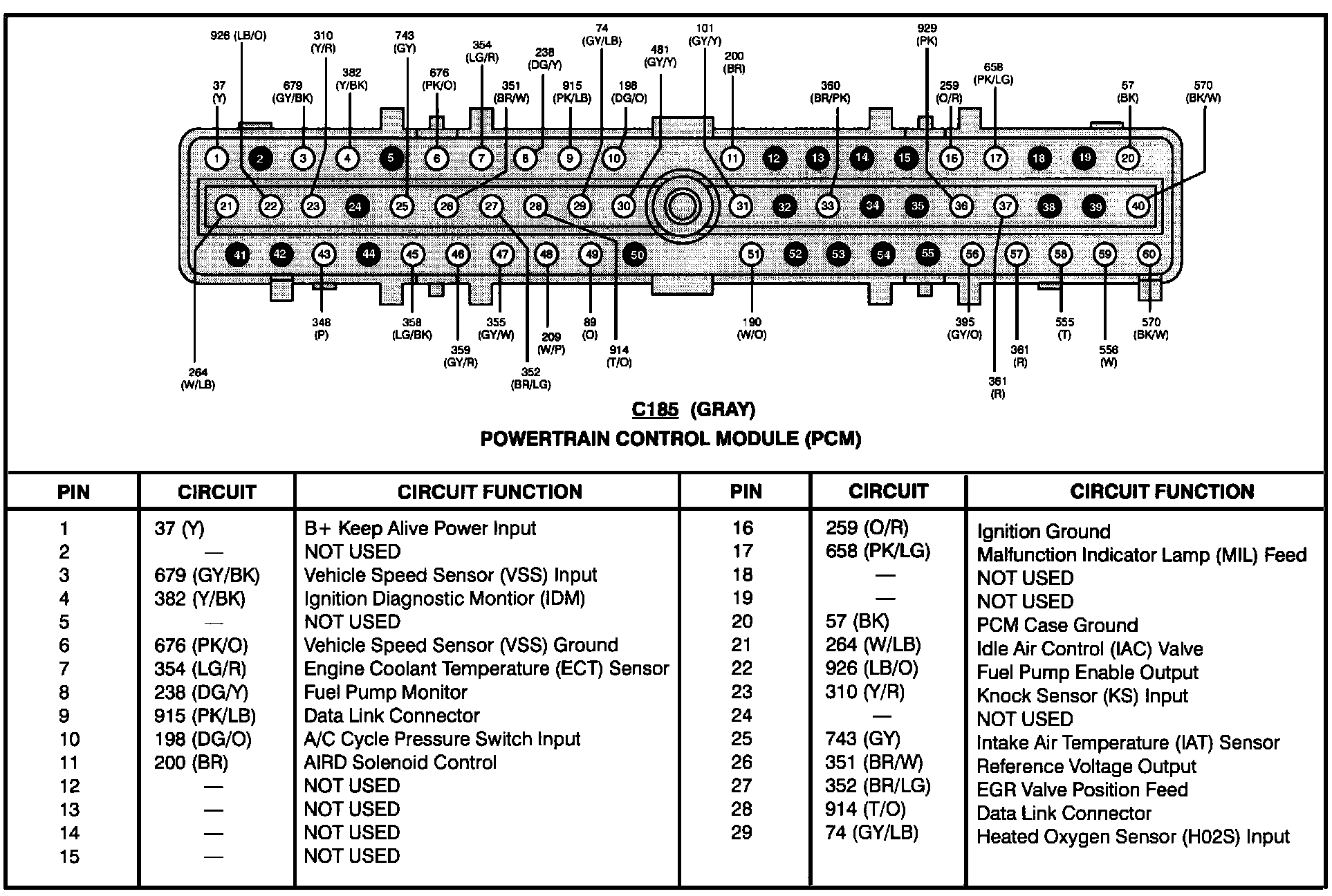

Powertrain Control Module (Without E4OD Or 4R70W Transmission) (Part 1 Of 2):

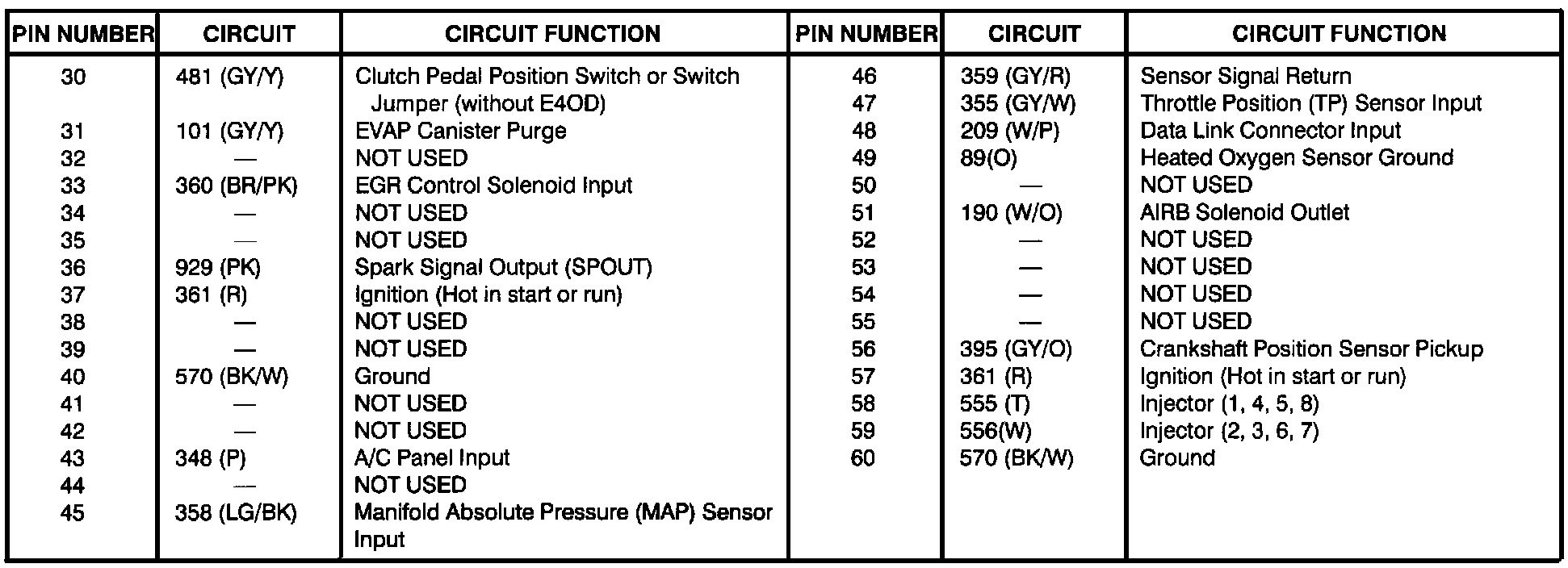

Powertrain Control Module (Without E4OD Or 4R70W Transmission) (Part 2 Of 2):
